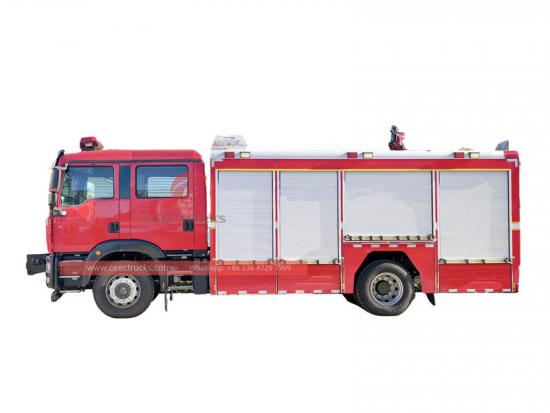

Trak bomba Howo 6000L CAFS untuk Nigeria

Trak bomba Howo 4x2 CAFS berat, dibina di atas casis Howo C5H berkualiti tinggi, menggabungkan kuasa unggul dengan pelepasan mesra alam, mampu menangani pelbagai rupa bumi yang mencabar. Ia menggabungkan pam air, sistem perkadaran buih dan sistem mampatan udara, memadamkan kebakaran dengan menyembur buih udara termampat. Ia juga mempunyai sistem penjanaan kuasa bebas dan sistem pencahayaan kecemasan, menyediakan pencahayaan pelbagai sudut, menyeluruh untuk menerangi laluan menyelamat dengan cepat semasa kebakaran. Panel kawalan adalah bahasa selectable and offers various optional configurations to meet different needs.

Harga pasaran:
$58900
Kapasiti kerja:
6 CBM
Dimensi ( mm ):
9800×2550×3600mm
Jarak roda ( mm ):
4600 mm
Kuasa enjin:
350HP
Jenis enjin:
MC07H.35-60
Pemanduan gandar:
4x2
Kotak gear:
HW, manual, 10 F & 2 R
Teguran:
Tank capacity can be customized

Siasatan sekarang

Yang Howo heavy 4x2 CAFS fire truck , built on the high-quality Howo C5H chassis, combines superior power with environmentally friendly emissions, capable of tackling various challenging terrains. It integrates a water pump, foam proportioning system, and air compression system, extinguishing fires by spraying compressed air foam. It also features an independent power generation system and an emergency lighting system, providing multi-angle, all around illumination to quickly illuminate rescue routes during a fire. The control panel is language selectable and offers various optional configurations to meet different needs.

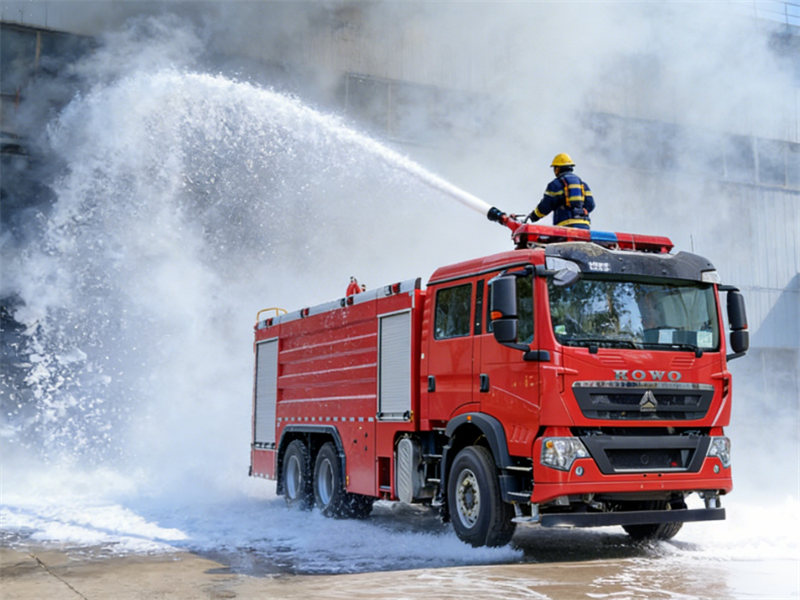

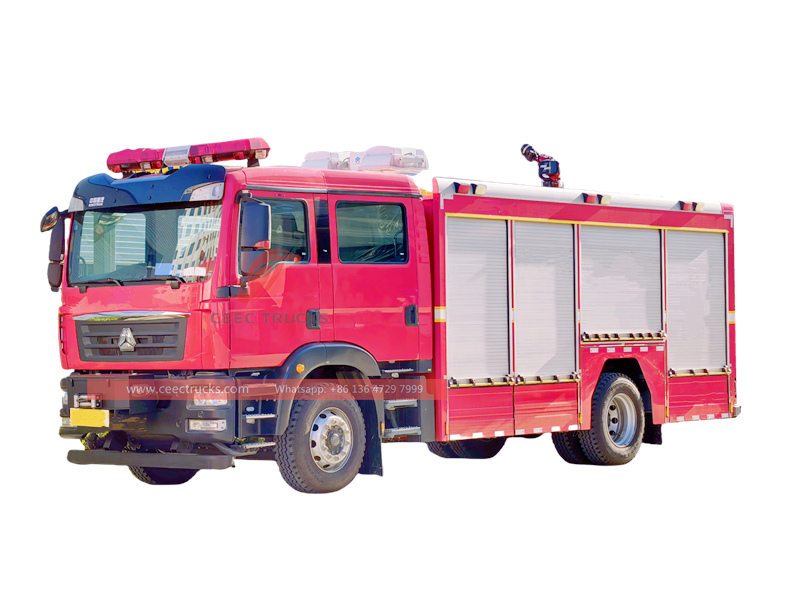

Howo C5H heavy CAFS fire truck

✦ Product Introduction of Howo Fire Foam Truck « « «

Manufacturer: CEEC Trucks Group

Features:

1. Truck Chassis: Sinotruk Howo truck chassis, 4X2,4x4 model

WP model with 340HP and Euro 2,3

2. Tank material: 4-6mm thick stainless steel for prolonged service lier
carbon steel, aluminum alloy or PP material can be choose

3. Tanker body: Customized for Water + Foam + Dry Powder fire agent

4. Fire Pump: CB10/40 centrifugal fire pump, flow rate 40L/s, working distance over 55m
Optional CB10/40, CB10/60 also available Darley fire pump

5. Special design: Super designed working temperature -41℃ to +48 ℃ day and night, with efficiently working height over 5000m

Optional equipped CAFS foam system and Dry Powder system

Full sets fire fighting rescue equipped for convenient working, fire extinguishing and people rescue

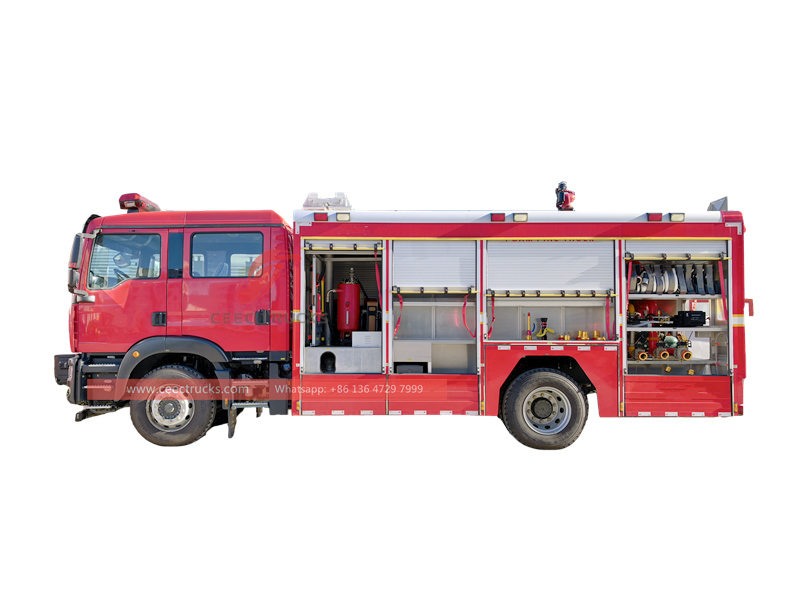

Howo fire foam trucks

✦ Product Parameter of Howo Fire Fighting Truck « « «

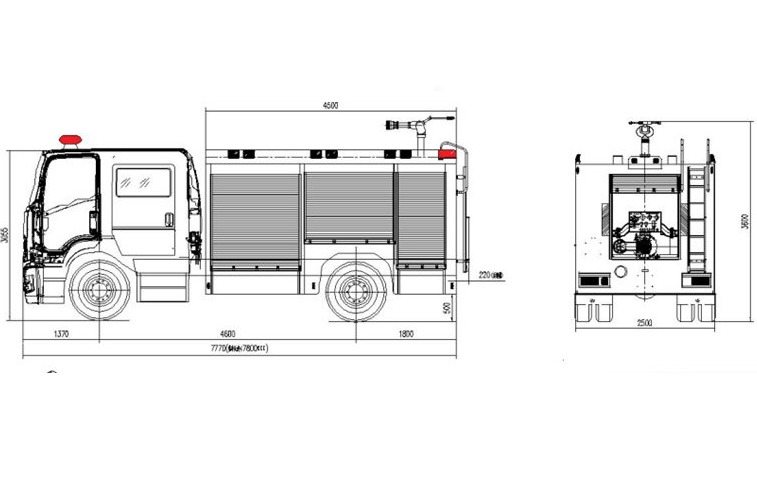

Howo TX fire foam truck

Howo 4x2 heavy CAFS fire truck
General	Vehicle Brand	CEEC Trucks Group
	Chassis Brand	Howo
	Overall Dimension	83 002 5 703 35 0mm
	GWW/ Kerb Weight	22 ,000kg/1 1 ,820kg
Cab	Cab Capacity	2+4 persons allowed
	Air Conditioner	air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	MC07H.35-60
	Power	3 5 0HP
	Displacement	‌7.36 L
	Emission Standard	Euro 5
Chassis	DriveType	4 X 2 ,left hand drive
	Transmission	HW 1 0 speed forward, 2 reverse
	Wheelbase/No.of axle	4 60 0 mm
	Tyre Specification	295/80R22.5
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	9 5 km/h
	Paint	Metallic paint
	Water Tank Capacity	4 ,000 Lite r s
	Tank Material	carbon steel
	Foam Tank Capacity	2,000 Liters
	Fire Pump	Brand	China TOP brand
		Drive mode	PTO
		Priming Manner	Automatic
		Pressure range	1.6-2.5 MPa
		Flow rate	45L / s
		Suction Height	9m
	Fire Cannon	Flow speed	45L /s
		Range	65 m
	Superstructure Electric Appliance	Warning Light and Siren	Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin.
		Strobe Light	Mounted on the both sides of the compartment
		External Lighting	LED lights are mounted on the both sides of the compartment
		Roof Lighting	LED lights are mounted on the inside of the roof
		Side Indicator Light	Inline yellow warning light is mounted on the side of the compartment and pedals
	All standard accessories.Typical modern fire apparatu scarries equipment for a wide range of fire fighting and rescue tasks.These include shovel,pike poles,axes and cutting equipment, halligan bars...
Optional	Back alarm and Camera can be equipped Standard carbon steel, stainless steel optional ** USA or Germany fire pump can be optional

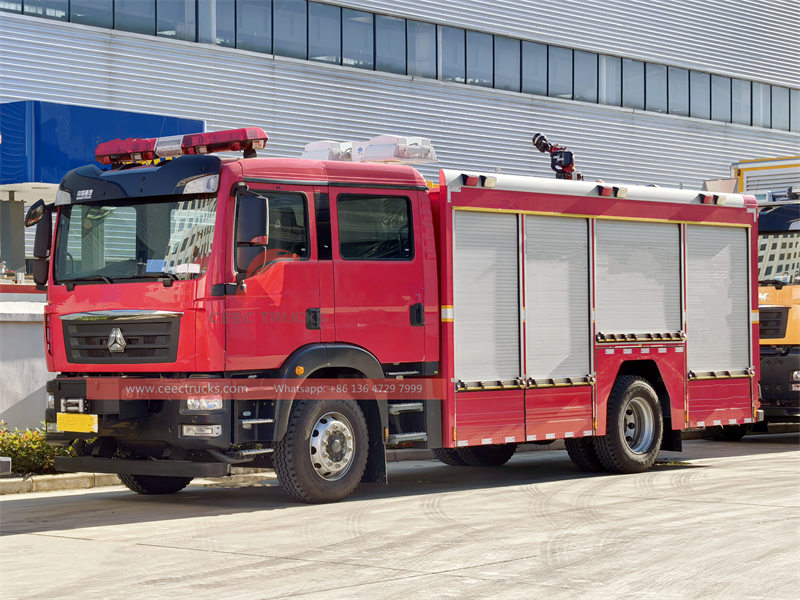

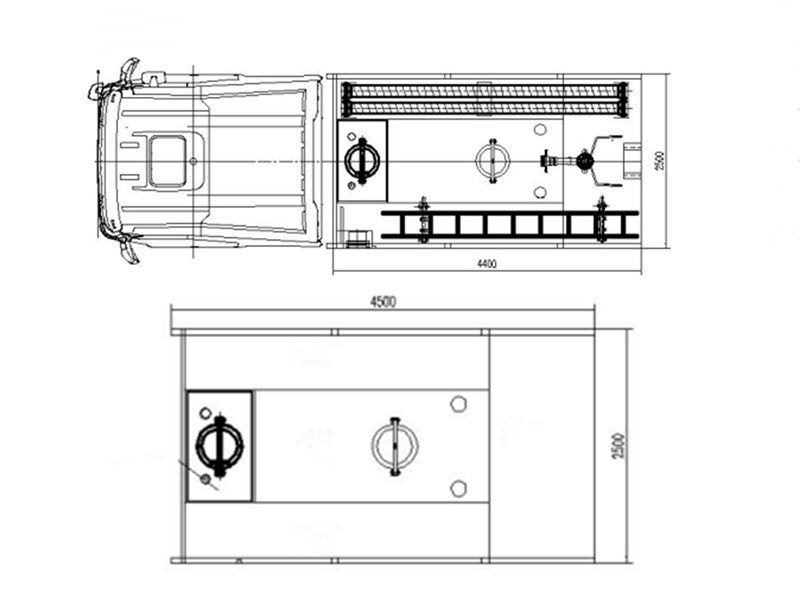

HOWO TX 4x2 foam water fire truck \

----- Tanker Material : Carbon steel, stainless steel, aluminum alloy, PP material

----- Fire Pump : Based on tanker body and jetting distance, optional American Darley brand

----- Optional: Pipeline, hose reel, aluminium ladder, Joint model (Chinese, European, American type)

✦ CAFS System Of Howo 4x2 Fire Truck « « «

The CAFS (Combined Firefighting System) firefighting process can be summarized in three key steps, corresponding to its 3 core systems:

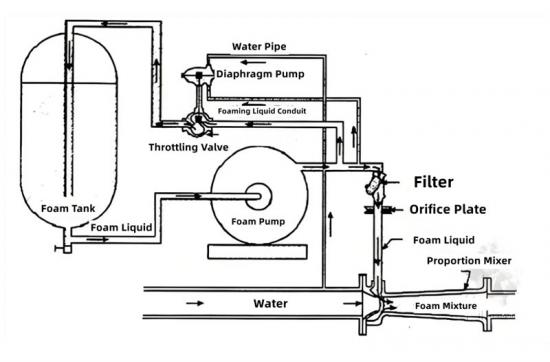

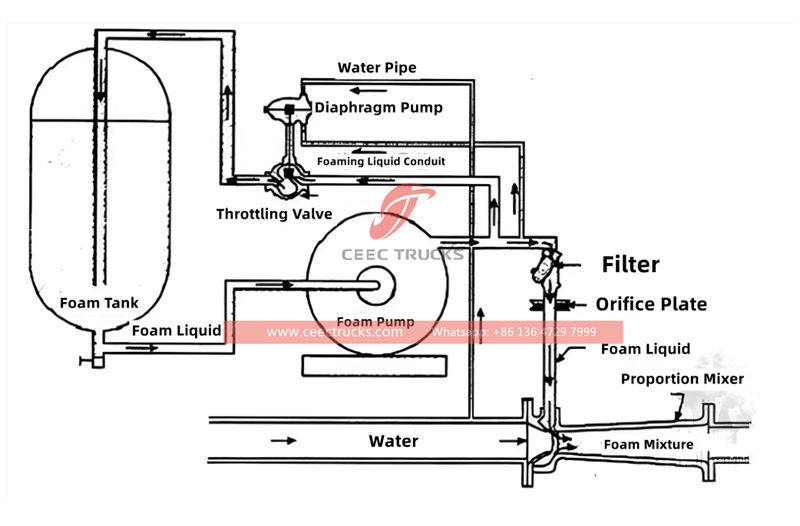

▶ Proportional Mixing:

The vehicle's water tank provides water.

The vehicle's foam tank provides foam concentrate.

A precise electronic or mechanical proportioner precisely mixes the water and foam concentrate at a preset ratio (typically 0.1% to 6%) to form a "foam solution."

Howo fire foam tank truck

▶ Air Injection:

The vehicle's air compressor starts working, generating high-pressure air.

The high-pressure air is injected into the pipeline containing the freshly mixed "foam solution."

Howo fire foam truck

▶ Fogging and Spraying:

The water, foam concentrate, and compressed air undergo turbulence and mixing in the pipeline, ultimately reacting fully in the foam generator (such as a water gun) at the end of the fire hose, producing extremely fine and uniform compressed air foam.

Firefighters spray this high-quality foam onto the fire scene using water guns.

Howo fire foam truck

✦ Advantage Of Howo 4x2 Fire Foam Truck « « «

1. Chassis Performance:

♦ Engine and Powertrain The Howo C5H is equipped with an MC07H.35-60 diesel engine, delivering a maximum power of 350 HP and a torque of 1230 N·m.

♦ Equipped with heavy-duty 295/80R22.5 tires, it offers a minimum turning radius of ≤12 meters and a wading depth of ≥800 mm, making it suitable for complex terrain and adverse weather conditions.

2.Structural design ：

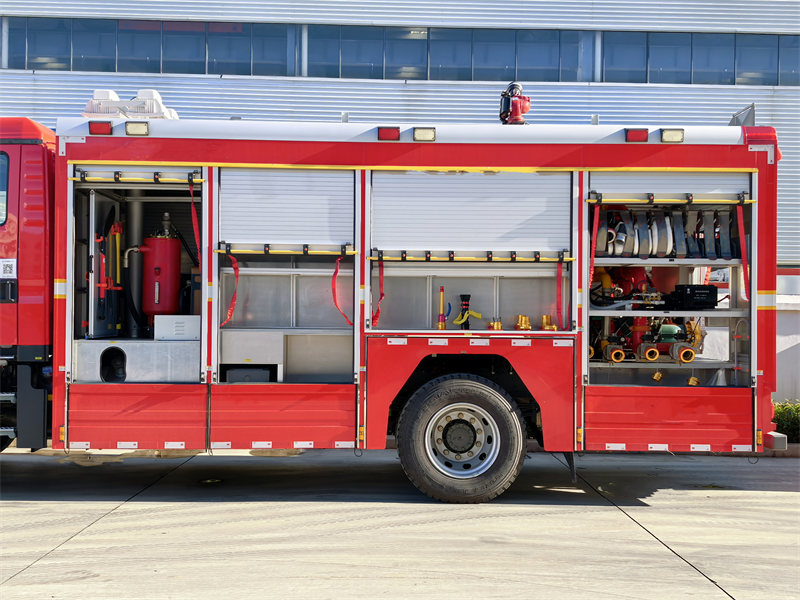

♦ The chassis adopts a high-strength carbon steel frame, anti-twisting box structure, and the external rolling door design facilitates quick access to rescue tools.

♦ The interior is equipped with adjustable aluminum alloy storage racks and rotating trailers to optimize space utilization.

✦ Optional Equipment Howo 4x2 Fire Foam Truck « « «

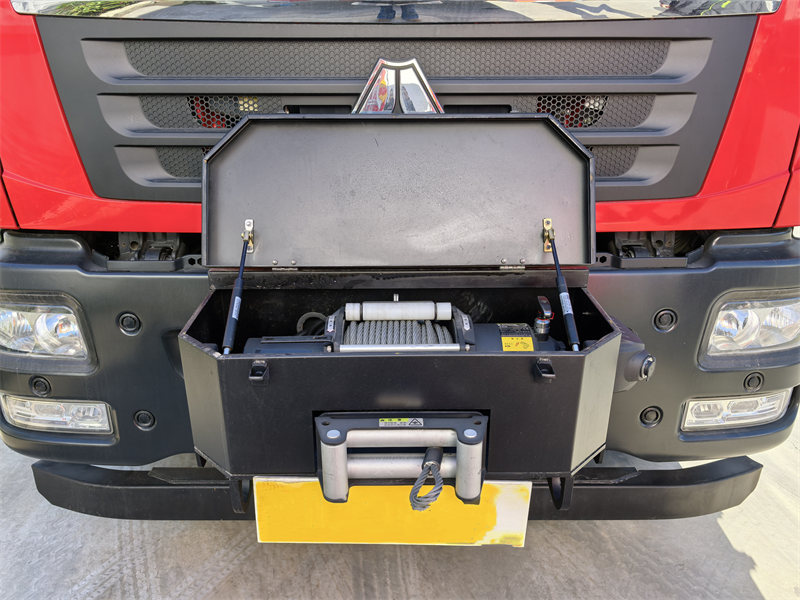

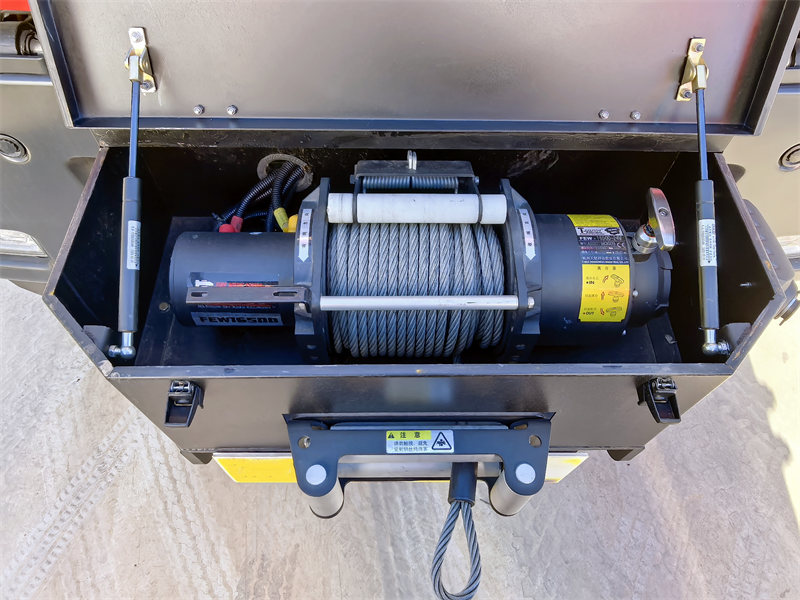

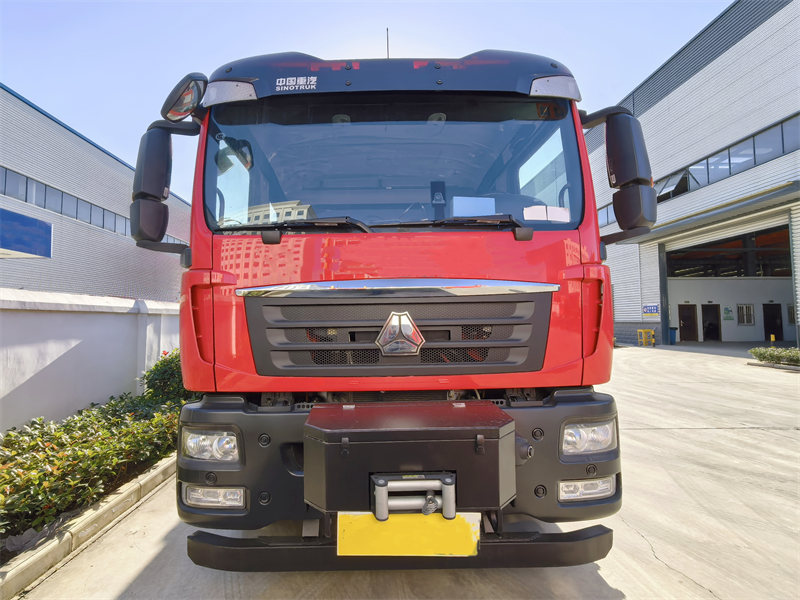

Electric Winch
Control type	E lectric control box
D istance	35m
Capacity	2 tons

Howo light rescue truck

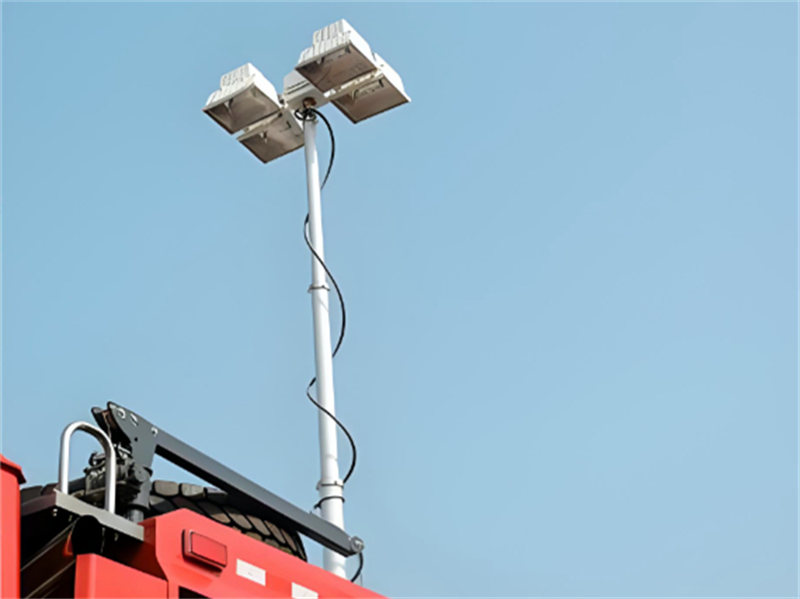

Lighting Mast	Height : 5 m
	telescope operated pneumatic
	integrated gasoline engine electrical generator

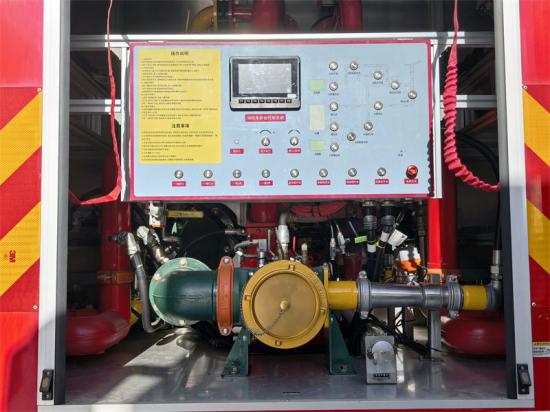

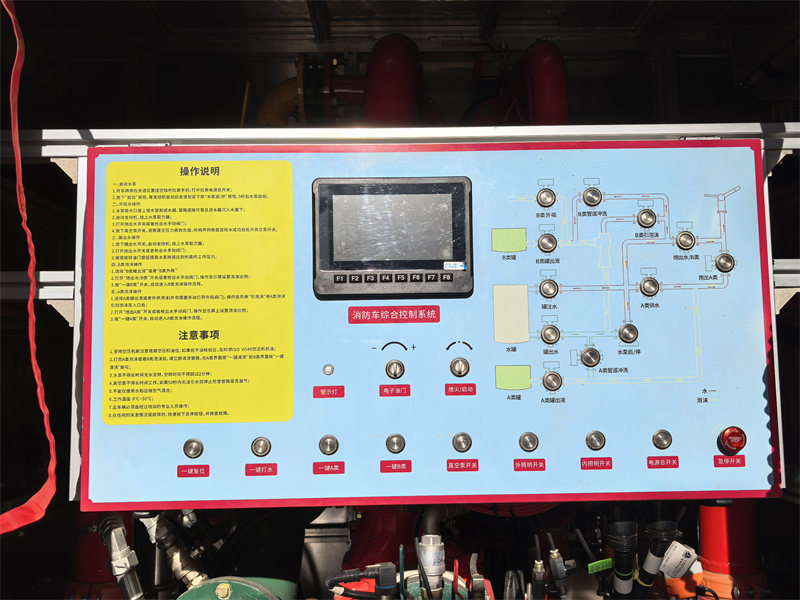

Control Panel

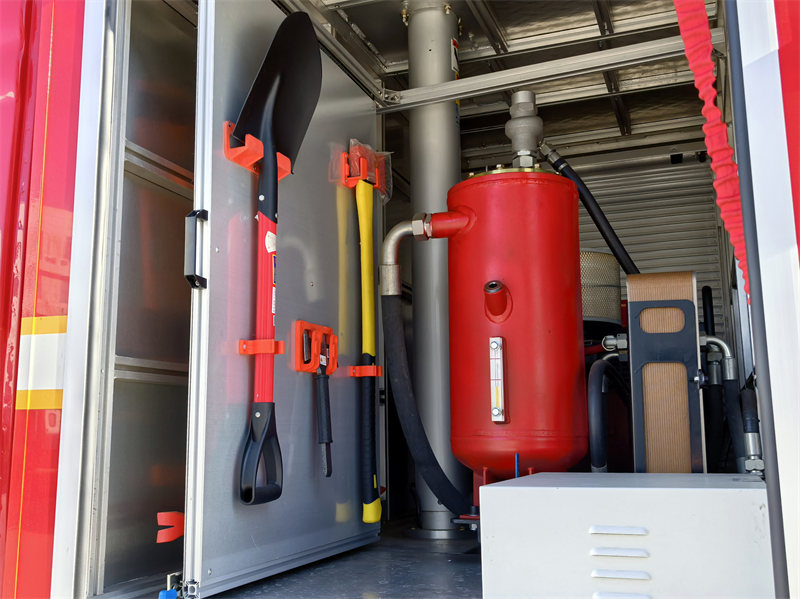

Fire Tool

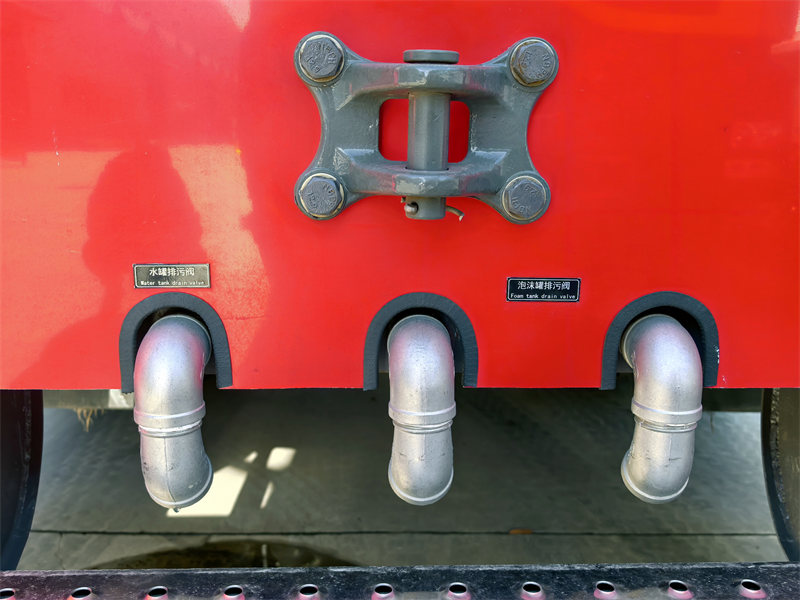

Drain Valves

● China best fire fighting truck factory
● More than 30 years professional manufacturer experience
● Be designed according to your requirements
● Professional sales team which will help you to choose suitable truck
● We can offer your a good after-sale service

⇒ Products--100% Customized Level One!

⇒ Transportation--100% Safety, Convenience, Efficient!

⇒ Services--7days + 24hours Safetify Service!

»»» CEEC trucks factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.

★ SINOTRUK MC07H.35-60 Euro 6 engine, super powerful

★ SINOTRUK HW Manual 10-shift mechanical transmission gearbox

★ 12 months fast moving spare parts for FREE

★ Authorized Howo 6000 liters water foam fire rescue truck

★ Training service for Howo TX 6CBM foam fire fighting truck .

HOWO TX 4x2 foam water fire truck

Howo fire fighting truck
