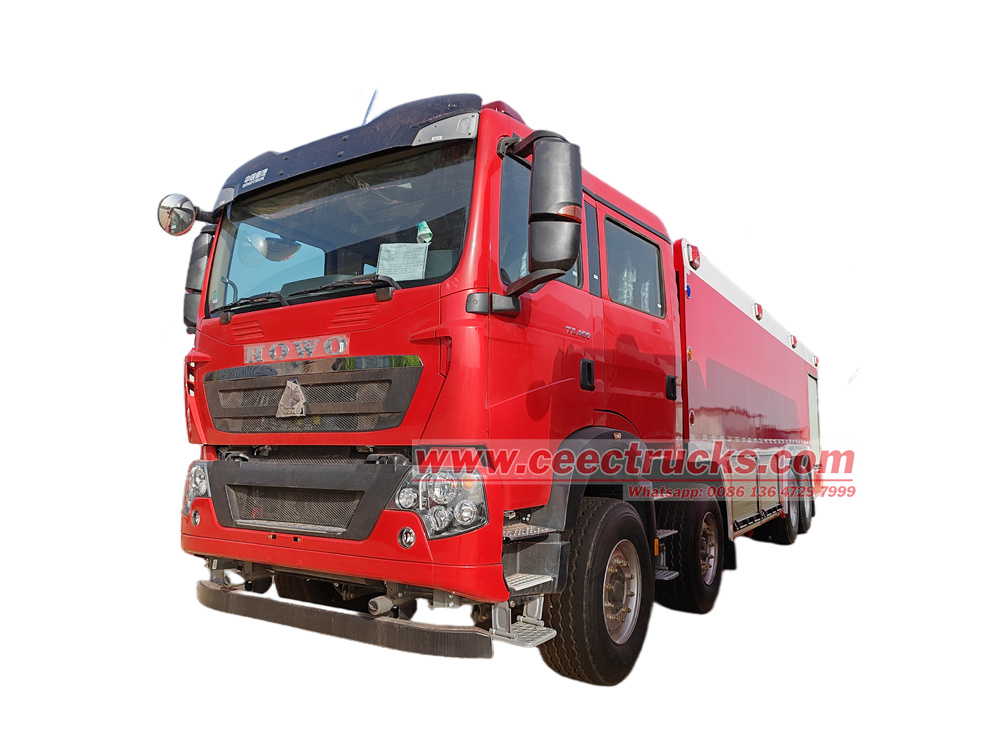

HOWO sitrak heavy foam pemadam kebakaran tender

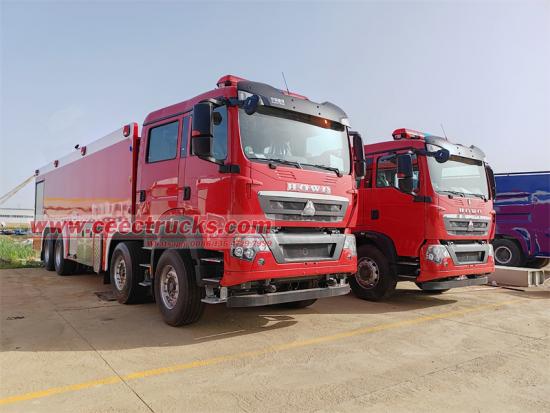

HOWO sitrak heavy foam pemadam kebakaran tender ialah peralatan memadam kebakaran profesional yang mengintegrasikan kuasa, fungsi dan kecerdasan. Kenderaan ini dibina pada HOWO TX460 8×4 casis khas, dilengkapi dengan enjin 460 kuasa kuda Sinotruk MC11H.46-61 National VI, dipadankan dengan kotak gear 12-kelajuan HW19712L, dan reka bentuk jarak roda 1950+3825+1350mm untuk memastikan kebolehlaluan dan kestabilan yang sangat baik.

HOWO 8×

● kilang trak bomba air HOWO terbaik di China

● 30 tahun pengalaman dalam reka bentuk tender api tangki air

● Reka bentuk mengikut keperluan anda

● Penghantaran segera. sebarang tempahan dialu-alukan

● Tempoh jaminan kualiti 24 bulan

★Casis: Asas pepejal, menempa kelebihan mudah alih

★Tangki: 15000L tangki air berkapasiti besar, bekalan air berterusan

The 15-cubic-meter carbon steel water tank has sufficient capacity and can provide a steady stream of water for firefighting work. Carbon steel is durable and has good corrosion resistance and pressure resistance, ensuring that there will be no leakage and other problems during long-term use. The equipment box equipped under the water tank is reasonably designed and clearly classified. Various fire-fighting equipment is neatly arranged in an orderly manner, which is convenient for firefighters to quickly access in an emergency, greatly improving the rescue efficiency.

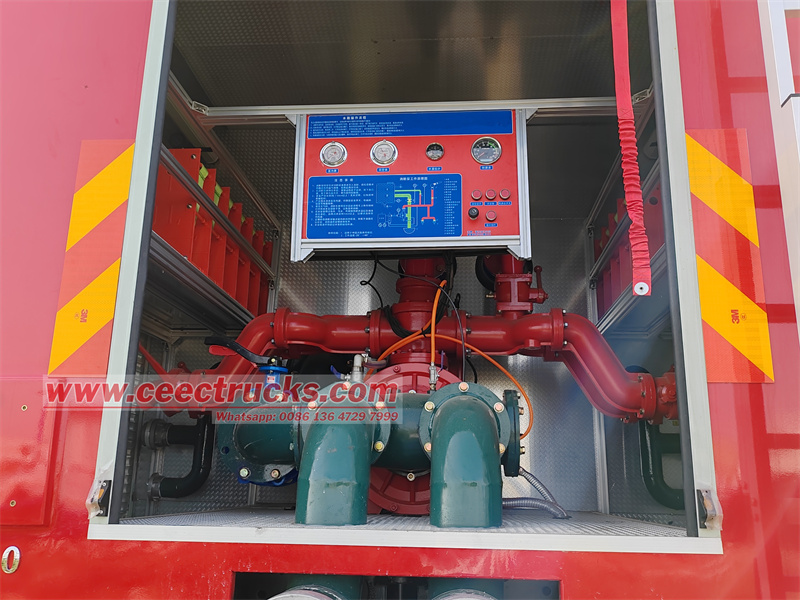

★ Pump room: Fire extinguishing center, controlling the overall situation

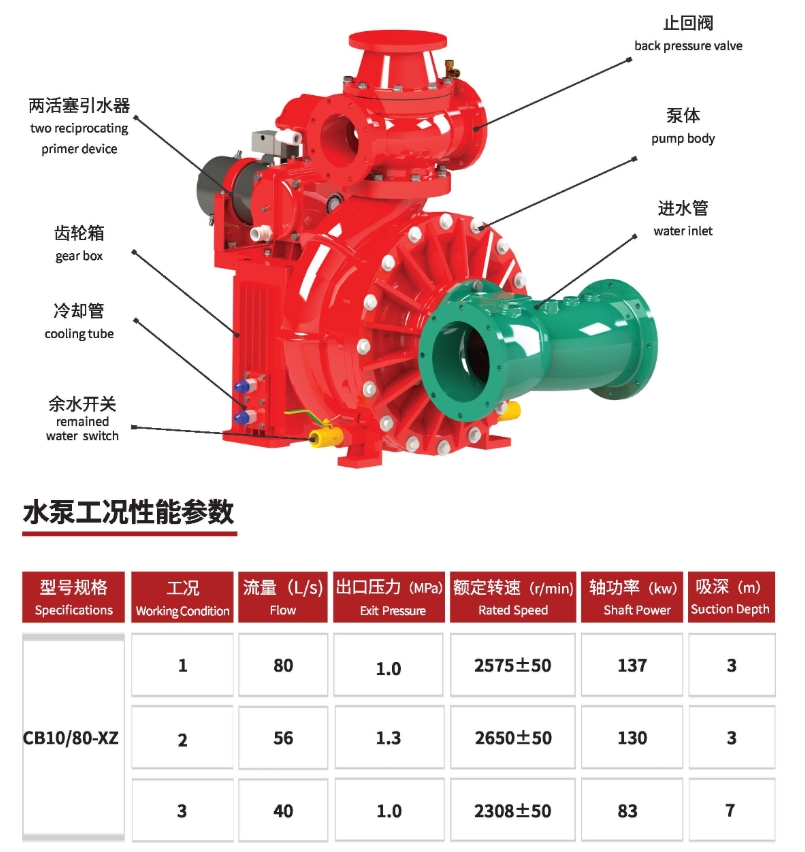

●CB10/80 fire pump

When facing fire scenes such as large shopping malls and factory warehouses, the fire is often fierce and spreads rapidly. At this time, the large flow advantage of the CB10/80 fire pump is fully demonstrated. It can form a strong water flow impact in a short time, break through the encirclement of the flame, and directly hit the core of the fire source, so as to buy precious time for subsequent fire fighting work. At the same time, the rated pressure of 1.0MPa ensures that the water flow can be sprayed to a longer distance with sufficient kinetic energy. Even in the face of high-rise building fires or fire sources located far away, it can achieve precise strikes, making firefighting operations more efficient and powerful.

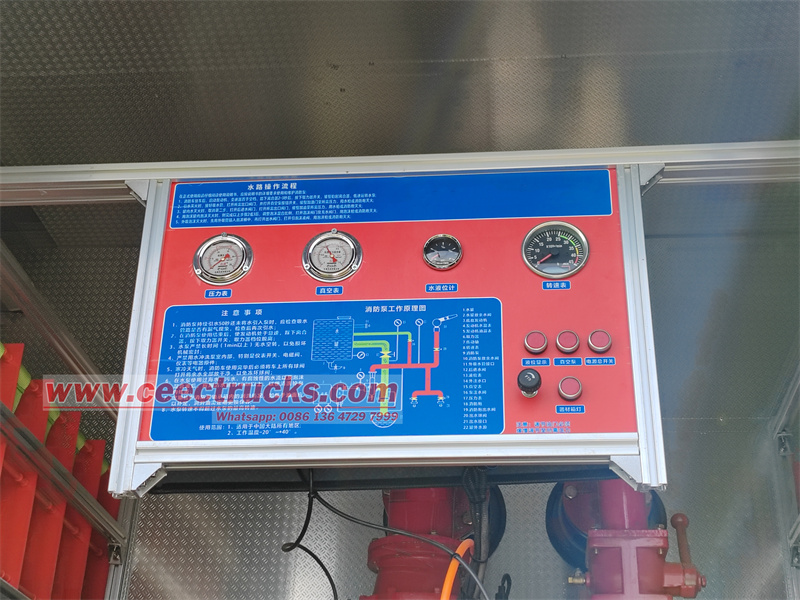

● Control panel

The pressure gauge accurately displays the water pressure output by the water pump. Firefighters can flexibly adjust the water pump speed or valve opening through the control panel according to factors such as the distance from the fire scene and the size of the fire, and accurately control the water pressure within the appropriate range to ensure that the water flow can be accurately and powerfully sprayed onto the fire source to achieve efficient fire extinguishing.

The vacuum gauge reflects the water absorption performance of the water pump in real time. If the water absorption is not smooth, the firefighters can detect it and take measures in the first time, such as checking whether the water suction pipe connection is tight, cleaning the filter, etc., to ensure the normal operation of the water pump.

The water level gauge intuitively displays the water level in the water tank, allowing firefighters to know the remaining water volume and plan water use reasonably to avoid water outages that affect the rescue progress. The tachometer helps firefighters to grasp the engine speed in real time, ensure that the engine works within a safe and efficient speed range, and extend the engine life.

The control panel also has control buttons such as liquid level display, vacuum pump, main power switch, equipment box light, PTO, etc., which are convenient and intuitive to operate. The liquid level display button allows firefighters to clearly view the water level even in a dimly lit environment; the vacuum pump button is used to control the start and stop of the vacuum pump. During the pumping operation, starting the vacuum pump can quickly establish a vacuum and improve the water absorption efficiency; the main power switch ensures the safety and stability of the pump room circuit, and can quickly cut off the power supply in an emergency; the equipment box light button provides lighting for firefighters to use equipment at night; the PTO button controls the transmission of power from the engine to the fire pump to ensure that the fire pump has sufficient power. The design of these buttons fully considers the actual needs of firefighters at the rescue site, and the operation is simple and fast, allowing firefighters to devote themselves to firefighting and rescue work.

★Fire monitor

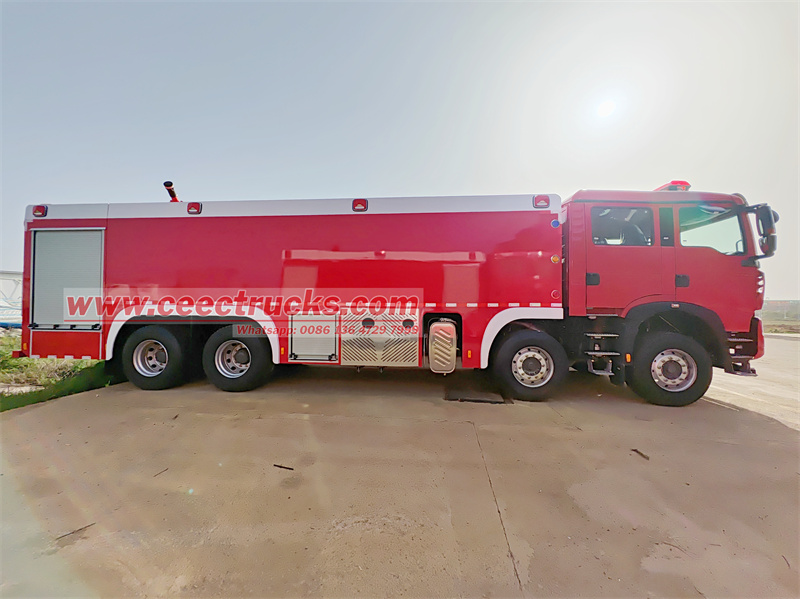

The PS50 fire monitor installed on the top of the HOWO TX460 8x4 water fire engine

It has a variety of spraying methods, which can be flexibly switched according to different fire types and fire conditions. When the direct current is sprayed, the water flow is concentrated and the impact force is large, like a steel dragon, which can penetrate the thick smoke and obstacles, spray directly to the core of the fire source, quickly reduce the temperature of the fire scene, and extinguish the flames. This spraying method is particularly suitable for extinguishing open flames at a distance or high-rise fires in large buildings, allowing firefighters to effectively control the fire without taking the risk of approaching the fire source.

When spraying, the water flow is dispersed into fine water droplets, forming a large area of water mist, like a huge water curtain, which can play a role in cooling, isolating air and absorbing smoke. When extinguishing special fires such as oil fires and electrical fires, the spray spray method can effectively prevent the spread and re-ignition of the fire and reduce fire losses. When spraying in bloom, the water flow spreads in a fan shape, which can fully cover a large area of fire and effectively control the spread of the fire. At large-scale fire scenes such as forest fires and warehouse fires, the bloom spray method can quickly suppress the fire and buy more rescue time for firefighters.

In addition, the PS50 fire monitor also has flexible rotation angle (360°) and pitch angle (-30～+70°) adjustment functions. Whether it is a fire on the top of a high-rise building, a fire in the corner of an underground garage, or a complex fire in a chemical enterprise, it can quickly adjust the angle and accurately spray the water flow to the fire source, greatly improving the efficiency and accuracy of fire extinguishing.

★Equipment room: a treasure house of equipment to meet diverse rescue needs

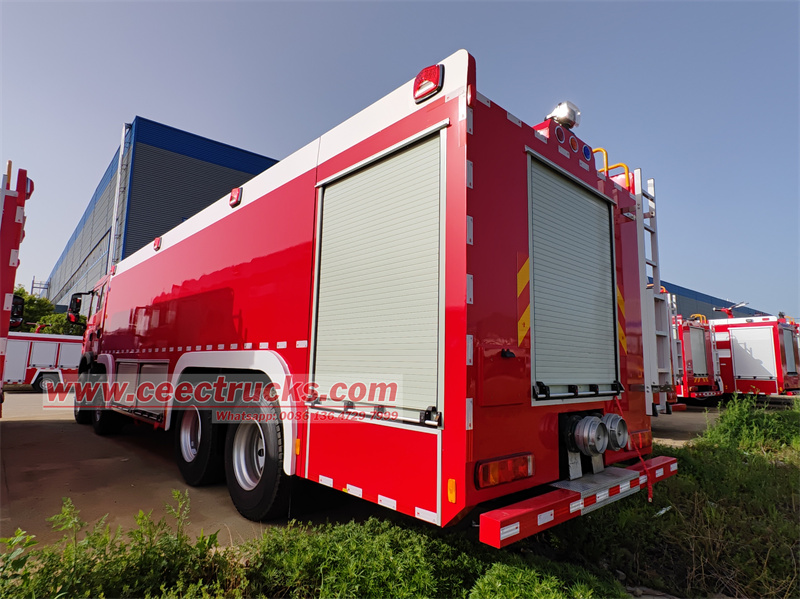

HOWO 8x4 heavy-duty water fire fighting truck, yang dipenuhi dengan peralatan dan alatan yang diperlukan untuk menangani pelbagai senario kebakaran dan penyelamatan. Bahagian dalam bilik peralatan menggunakan reka bentuk susun atur yang saintifik dan munasabah, dan peralatan disimpan di kawasan yang berbeza mengikut jenis, tujuan dan kekerapan penggunaan. Hos api, hos kebakaran, pengumpul air, penapis air, pengedar air, kapak api, beliung, penyodok dan peralatan lain yang biasa digunakan diletakkan di lokasi yang mudah diakses. Selepas menerima misi penggera, anggota bomba boleh mencari dan menggunakan peralatan ini secepat mungkin dan dengan cepat terlibat dalam kerja memadam kebakaran dan menyelamat.
