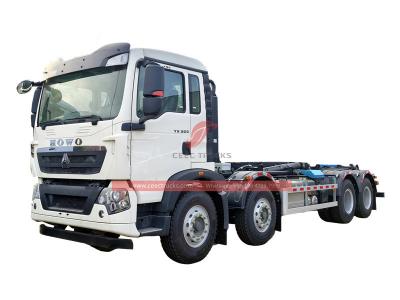

Howo heavy 20CBM hook lift truck for sale

Trak angkat cangkuk Howo TX 20CBM untuk Nigeria

Ini adalah prestasi yang tinggi Howo TX heavy garbage hooklift truck, highlighting the precision engineering design of modern urban sanitation vehicles. Equipped with Weichai WP8.350E62 6- cylinder diesel engine with a rated power of 35 0 HP , it is not only powerful but also environmentally friendly. The total mass of 3300 0kg, a load capacity of 20 tons, and a maximum speed of 105km/h.

Kapasiti kerja:
20CBM
Dimensi ( mm ):
11300*2550*3340 mm
Jarak roda ( mm ):
1350+4350+1750 mm
Kuasa enjin:
350HP
Jenis enjin:
WP8.350E62
Pemanduan gandar:
8x4, LHD
Kotak gear:
HW 10-shift
Teguran:
RHD drive type avaiable

Siasatan sekarang

Ini adalah prestasi yang tinggi Howo TX heavy garbage hooklift truck , highlighting the precision engineering design of modern urban sanitation vehicles. Equipped with Weichai WP8.350E62 6- cylinder diesel engine with a rated power of 35 0 HP , it is not only powerful but also environmentally friendly. The total mass of 3300 0kg, a load capacity of 20 tons, and a maximum speed of 105km/h.

Its hydraulic lifting system has a maximum lifting capacity of 20 tons, a discharge time of 50 -5 5 seconds, a maximum dumping angle of 45°, and a hydraulic system pressure of 26 Mpa, which can meet the basic needs of urban sanitation companies. The truck body is made of 5-6mm thick carbon steel material to ensure structural strength and durability. Equipped with dual operation modes of manual and wireless remote control .

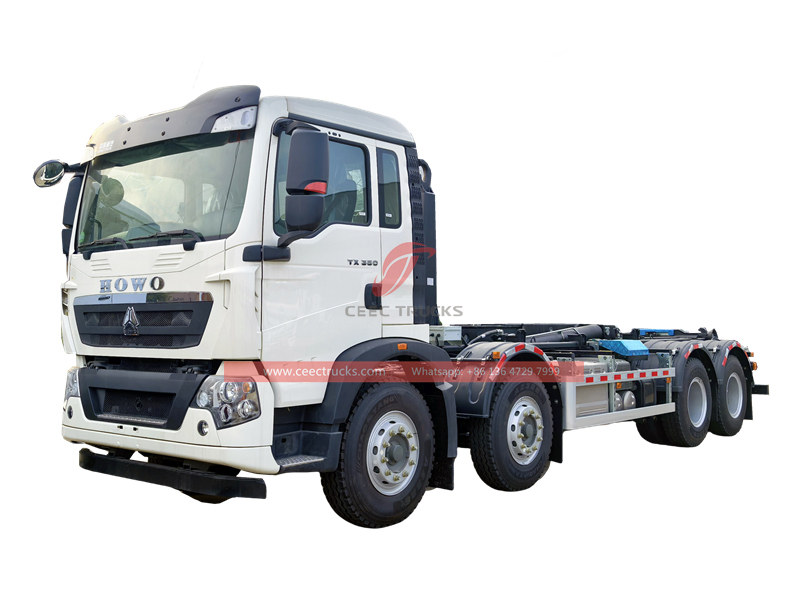

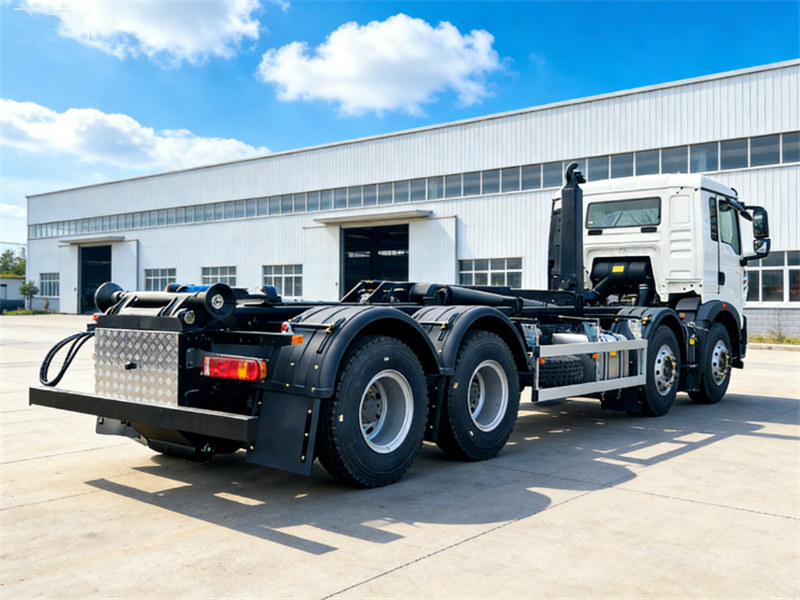

Howo TX 8x4 hook lift truck

* Howo TX heavy 20CBM hook lift truck

Howo TX 350HP hook lift truck*

-----------------------------------------------------------------

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

✦ Product Introduction of Howo Hook Loader Truck « « «

Manufacturer: CEEC Trucks Group

Features:

★ 350HP powerful WP8.350E62 diesel engine, 100,000 Km without prblem.

★ Howo TX new cabin, Mercedes Benz design

★ 20tons telescopic hook loader kit, super powerful

★ Customized uncover bins 6300x2300x1500mm

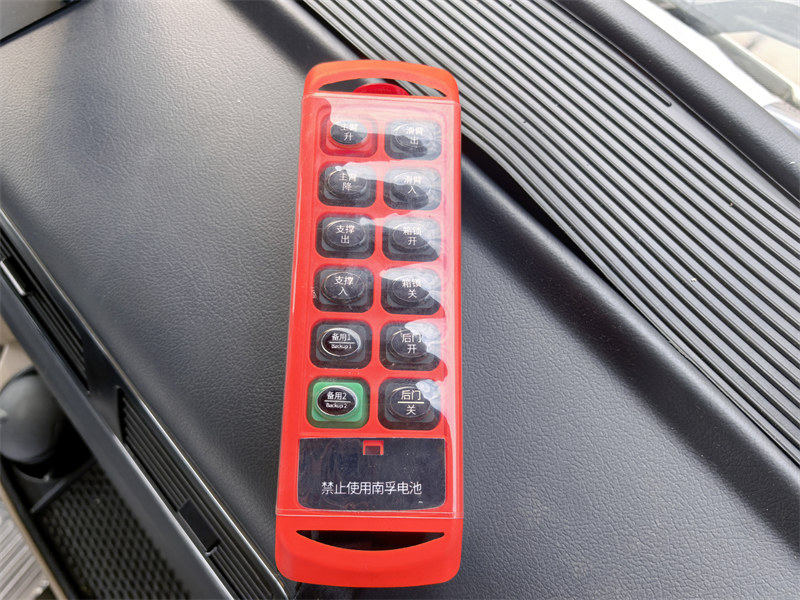

★ Integrated control system: Hydraulic valve, In cabin Electric box, Wireless remote control box

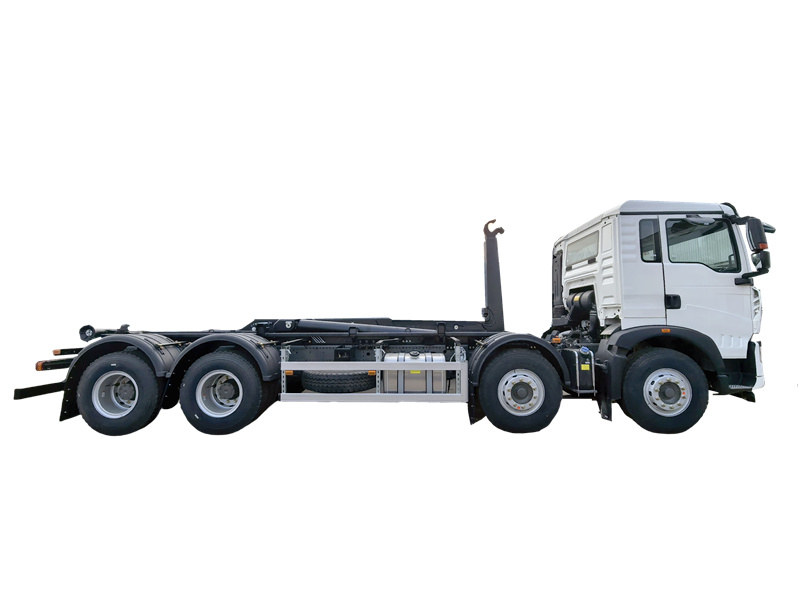

Howo 8x4 hook loader truck

✦ Product Parameter of Howo Hook Loader Truck « « «

Howo TX heavy 20tons hooklift truck
Vehicle model		CEEC 5 335 0GLB
Dimension(L×W ×H)(unloaded)(mm)		113 002 5 50 33 40mm
Garbage bucket capacity		20CBM
Approaching angle/Departure angle(°)		22 /2 9
Wheel base (mm)		1350+4350+1750
Max speed(km/h)		105
GVW		33 5 0 0kg
Curb weight(kg)		135 00kg
Loading Weight(kg)		20 tons
Engine	Model	WP8.350E62,water-cooled, 4 strokes, 6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection
	Fuel type	Diesel
	Power	35 0HP/ 257 Kw
	Emission	EURO 3
	Displacement	7.8L
	Rated speed	2 2 00rpm
	Max.torque	850 N·m
Fuel tanker capacity(L)		4 00L
Transmission	Model	HW 10 speed,manual
Brake system	Service brake	Dual circuit compressed air brake
	Parking brake	spring energy, compressed air operating on rear wheels
Front axle	Steering with double T-cross section beam
Rear axle	Pressed axle housing, central double reduction with differential locks between axles and wheels
Cab	Configuration	Howo TX single row cab, with air conditioner, allowable 2 passengers, with ABS, with air suspension seat
Tyre	Size	12.00 R 20 Tire, With one spare tire
	Number	10 +1 pcs
Electrical system	Battery	24 V
	Alternator	28V-1500kw

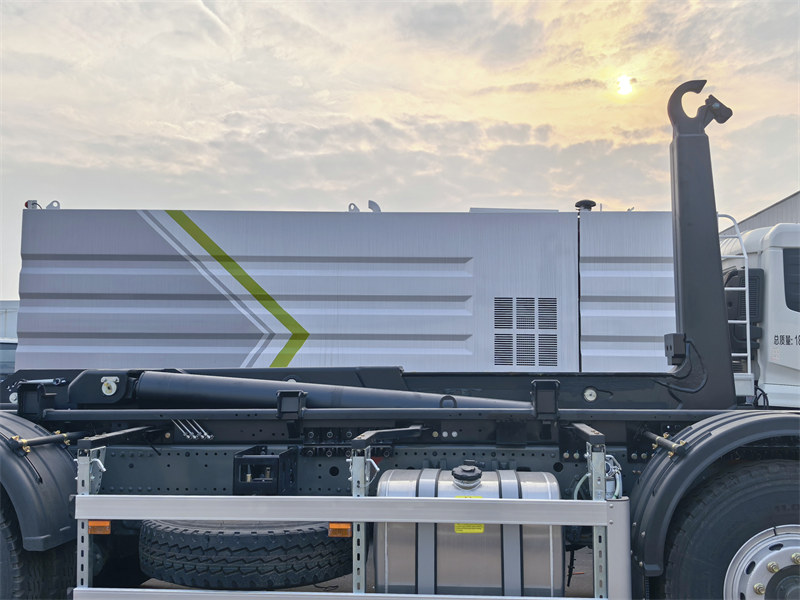

LIFTING SYSTEM
Lift capacity	20 tons
Garbage bin material	Carbon steel
Sidewalls	Sheet carbon steel (thickness: 5 mm)
Bottom	Sheet carbon steel (thickness: 6 mm)
Discharge time	50 S-5 5 S
Discharge system	lifting/dump type
Max dump angle		45 °
Hydraulic system pressure	16Mpa
Standard equipment	Hydraulic oil pump and operation valve, balance valve, hydraulic lock, main operation oil cylinder of hook arm, sliding oil cylinder of sleeve arm, hydraulic oil pipe , hydraulic oil tank, Hydraulic strengthen rear outrigger. Operation way: Manual and Wireless remote control operation. One dumper box,

✦ Advantage of Howo Hook Lift Truck « « «

1.Low-speed high-torque power platform :

♦ The WP8 inline 6 cylinder diesel engine uses high-pressure common rail fuel injection technology .

♦ T o achieve a maximum torque of 850 N·m@ 22 00rpm at a rated power of 35 0 horsepower .

♦ E nsuring that the truck maintains power responsiveness in urban conditions with frequent start-stop.

♦ Through the combined application of EGR exhaust gas recirculation and DOC particle oxidation catalytic device.

2.Energy management optimization :

♦ The hydraulic system uses a load-sensitive variable piston pump

♦ A utomatically reduces the flow output in the non-operating state.

♦ With the engine intelligent start-stop technology, the actual operating fuel consumption is reduced by 15%-18% compared with the traditional system.

3. Breakthrough in rapid loading and unloading technology:

♦ The 16MPa high-pressure hydraulic system cooperates with the double-acting cylinder

♦ T o achieve a maximum tilt angle of 45° under a load of 6 tons in only 50 -5 5 seconds

♦ T he number of daily operation cycles is increased by 30%.

♦ The hook arm mechanism adopts finite element topological optimization design .

♦ T he key hinge point uses chromium-molybdenum alloy steel bushings with a fatigue life of 500,000 cycles.

4. Multi-scenario adaptability :

♦ The standardized hook arm interface is compatible with 8-25m³ mobile garbage bins.

♦ Through the quick change device, different functional modules compression bins and medical waste bins, can be switched within 5 minutes.

✦ Application of Howo Hook Loader Truck « « «

The Howo TX heavy 20CBM hooklift truck achieves:

⇒Time window compression: one day operation coverage radius expanded to 50 square kilometers

⇒Labor cost optimization: labor input per 10,000 tons of garbage processing is reduced by 2.5 people/shift

Actual operation data shows that deploying 1 0 such vehicles in a city with a population of one million can shorten the garbage retention time from 12 hours to 6 hours, reduce PM2.5 dust pollution by 18%, and have significant positive environmental externalities.

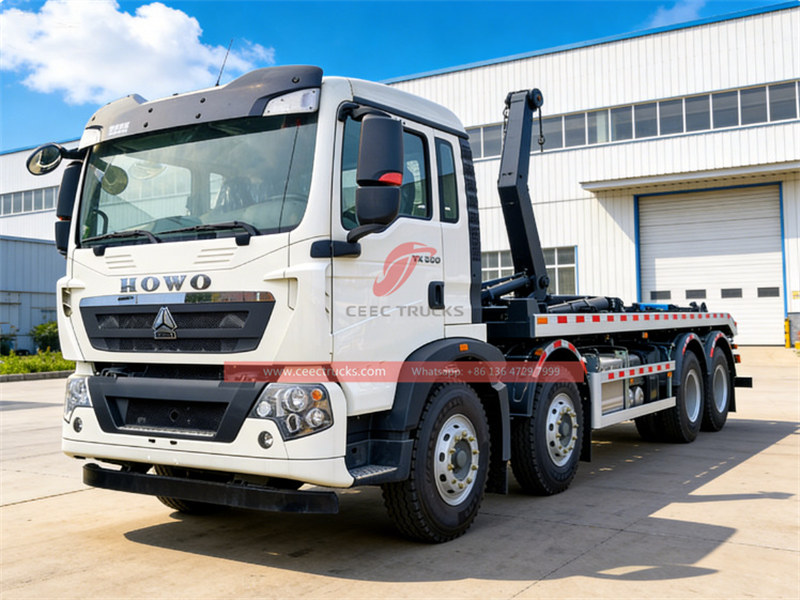

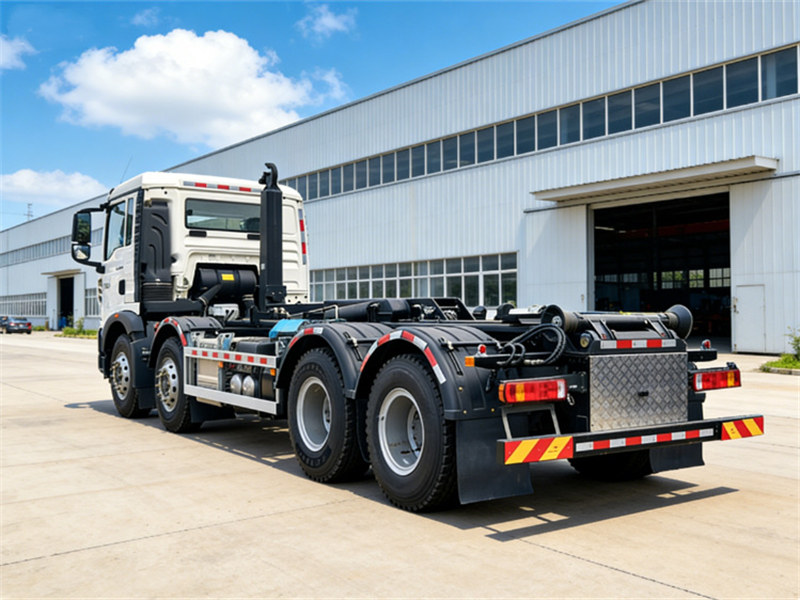

Howo TX heavy 20CBM hook loader truck

Products--100% Customized Level One!

Transportation--100% Safety, Convenience, Efficient!

Services--7days + 24hours Safetify Service!

1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasionalble price

3.we can offer your a reliable after-sell service

4.we have skilled professinal design team

5. promptly delivery. any order is welcome.

CEEC factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.

★ Euro 3 type, Weichai engine, fuel consumption save 20%

★ HW Manual 10 shift mechanical transmission gearbox

★ 12 months fast moving spare parts for FREE

★ Authorized Howo 20CBM hook loader truck exporter

★ Training service for Howo hook lift.

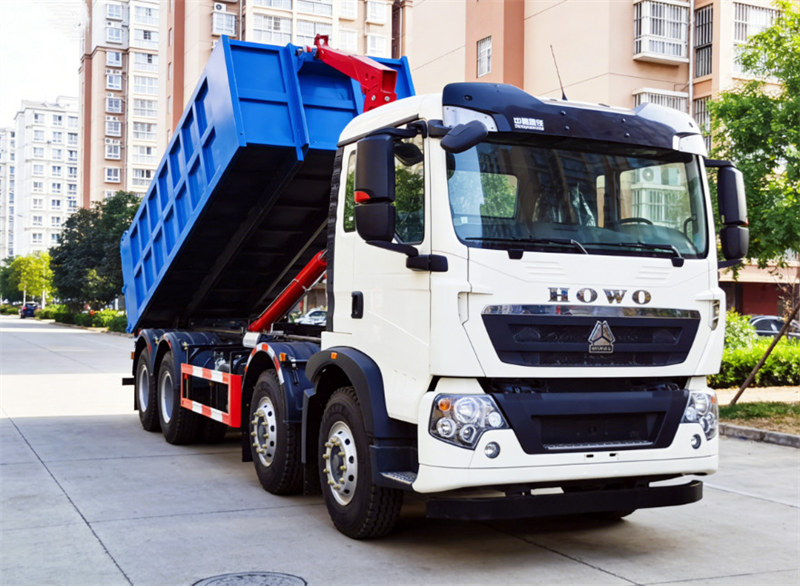

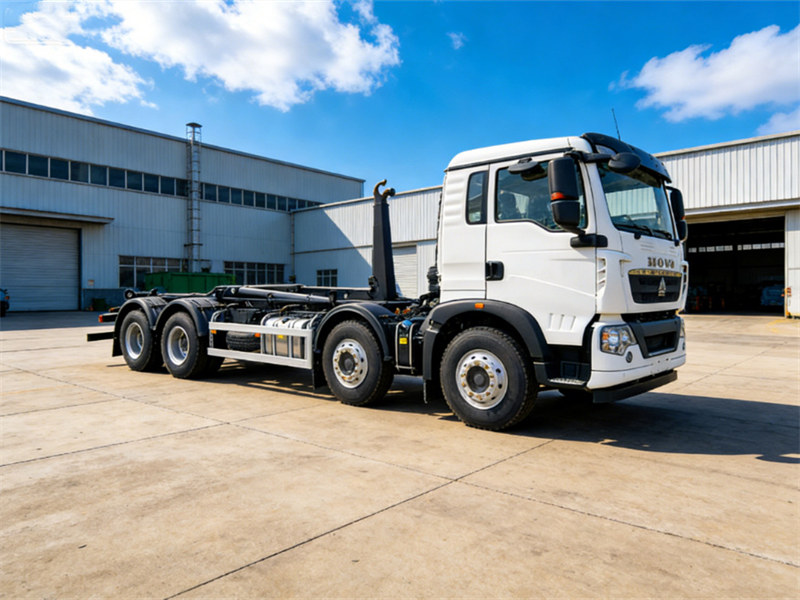

Howo TX heavy 20CBM hook loader truck

Pembekal dan pengeksport trak angkat cangkuk profesional China, kami membekalkan trak pemuat cangkuk berkualiti tinggi. Kami dapat memastikan masa penghantaran yang cepat dan jaminan 12 bulan untuk trak pemuat cangkuk kami. Trak pemuat cangkuk kami dijual ke lebih 80 buah negara termasuk Eropah Timur dan negara-negara CIS, Afrika, Asia Tenggara, Amerika Tengah dan Selatan, Timur Tengah, dll.
