Lori kebakaran Howo TX dengan serbuk kering

[if gte mso 9]>1111MicrosoftInternetExplorer402DocumentNotSpecified7.8磅Normal0 LsdException Locked="false" Priority="99" SemiHidden="false" Name="heading 8" > " Priority Locked="falseException>" " Priority="99" SemiHidden="false" Name="anotation subject" > " LsdException Locked="false" Priority="99" SemiHidden="false" Name="Balloon Text" > " Priority Locked="falseException>" Priority="99" SemiHidden="false" Name="Colorful List Accent 2" > Medium Shading :LsdException LockedLsfalse 3" > Priority="99" SemiHidden="false" Name="Medium Grid 1 Accent 3" > :LsdException Locked="false" > Priority="99" SemiHidden="false" Name="Light Grid Accent 4" > LsdException Locked="false" Priority="99" SemiHidden="false" Name="Medium Grid 3 Accent 4" > :LsdException LockedLsfalse 6" > Priority="99" SemiHidden="false" Name="Medium Shading 2 Accent 6" > :LsdException LockedLsfalse 6" > Priority="99" SemiHidden="false" Name="Medium Shading 2 Accent 6" >

Ini ialah trak bomba nitrogen serbuk kering yang dibina di atasnya Howo TX Casis. Ia dilengkapi dengan yang berkuasa Weichai 340HP enjin dengan sesaran 9.839L. Ia mengamalkan a 6 X 4 mod pemacu dan dilengkapi dengan 1 0 -kotak gear kelajuan. Kelajuan maksimum boleh mencapai 9 5 km/j, yang boleh menyesuaikan diri dengan pelbagai keadaan jalan yang kompleks. Dari segi sistem perlindungan kebakaran, kenderaan itu dilengkapi dengan 700kg tangki simpanan serbuk kering keluli karbon dan 6unit Silinder nitrogen 80 liter dengan tekanan reka bentuk 15MPa.

Kapasiti kerja:
4000L water+2000L foam+500kg dry
Dimensi ( mm ):
10300*2670*3550 mm
Jarak roda ( mm ):
4350+1350 mm
Kuasa enjin:
340HP
Jenis enjin:
WP10.340E60
Pemanduan gandar:
6x4,LHD
Kotak gear:
HW19710 gearbox,10 forward and 2 reverse
Teguran:
High-strength aluminum alloy or titanium alloy frames

Siasatan sekarang

This is a dry powder fire truck built on Howo TX Chassis. It is equipped with a powerful Weichai 340HP engine with a displacement of 9.839L. It adopts a 6 X 4 drive mode and is equipped with a 1 0 -speed gearbox. The maximum speed can reach 9 5 km/h, which can adapt to various complex road conditions. In terms of the fire protection system, the vehicle is equipped with 700kg carbon steel dry powder storage tanks and 6units 80-liter nitrogen cylinders with a design pressure of 15MPa.

The fire pump is driven by PTO, with a pressure range of 1.6-2.5 MPa and a flow rate of 80-120 kg/s. The fire cannon has a spray speed of 60-100 kg/s and a range of 40-60 meters, which can effectively respond to various fire situations. The Howo fire truck is also equipped with a full set of standard fire rescue equipment, such as shovels, crowbars, axes and cutting equipment, and ladders and floodlights are optional.

[if gte mso 9]>1111MicrosoftInternetExplorer402DocumentNotSpecified7.8 磅Normal0

Howo heavy fire dry powder truck

* Howo heavy fire water cannon riot truck

Howo heavy fire fighting truck*

-----------------------------------------------------------------

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ. Product Defination and Introduction:

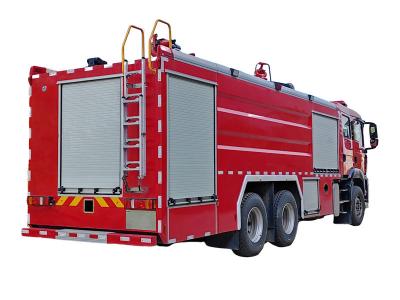

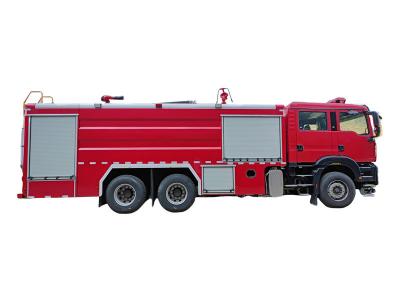

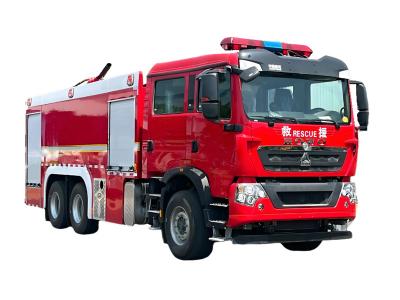

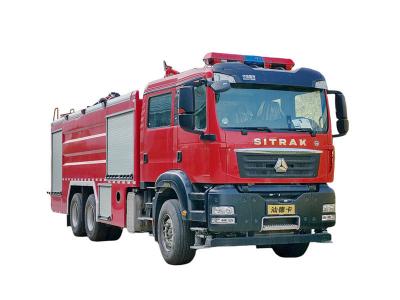

Howo heavy fire dry powder truck

Howo 6x4 heavy dry powder fire truck
General	Vehicle Brand	CEEC Trucks Group
	Chassis Brand	Howo
	Overall Dimension	103 0026703 55 0mm
	GWW/ Kerb Weight	25 ,000kg/1 1 ,820kg
Cab	Cab Capacity	2+4 persons allowed
	Air Conditioner	air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	Weichai engine , WP10.340E32
	Power	3 4 0HP(2 57 kw)
	Displacement	9.839L
	Emission Standard	Euro 3
Chassis	DriveType	6 X 4 ,left hand drive
	Transmission	HW 1 0 speed forward, 2 reverse
	Wheelbase/No.of axle	4 35 0 +1375 mm
	Tyre Specification	295/80R22.5
	Tyre Number	10 tyres and 1 spare tyre
	Max Speed	9 5 km/h
	Paint	Metallic paint
Superstructure	Dry Powder Tank Capacity	700 kg	4 pcs
	TankMaterial	C arbon steel
	Nitrogen Gas Bottle	Material	37Mn
		Capacity	80Litres
		Quantity	12
		Design pressure	15MPa

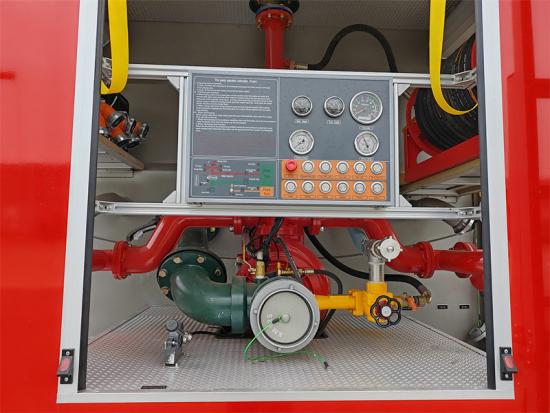

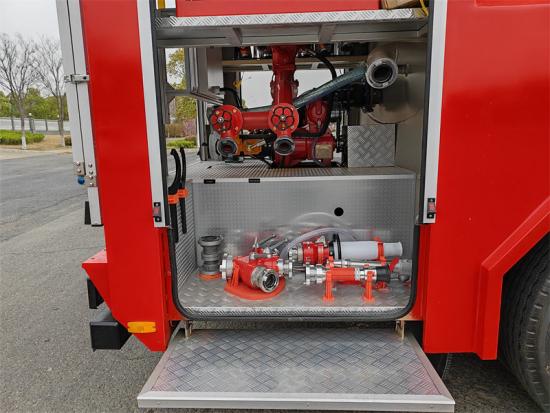

	Fire Pump	Drive mode	PTO
		Pressure range	1.6-2.5 MPa
		Flow rate	80-120 kg/s
	Fire Cannon	Flow speed	60-100 kg/s
		Range	40-60 m
	Water Tank Capacity	4 ,000 Litres
	Tank Material	carbon steel
	Fire Pump	Brand	China TOP brand
		Drive mode	PTO
		Priming Manner	Automatic
		Pressure range	1.6-2.5 MPa
		Flow rate	45L / s
		Suction Height	9m
	Fire Cannon	Flow speed	45L /s
		Range	65 m
	Superstructure Electric Appliance	Warning Light and Siren	Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin.
		Strobe Light	Mounted on the both sides of the compartment
		External Lighting	LED lights are mounted on the both sides of the compartment
		Roof Lighting	LED lights are mounted on the inside of the roof
		Side Indicator Light	Inline yellow warning light is mounted on the side of the compartment and pedals
	All standard accessories.Typical modern fire apparatu scarries equipment for a wide range of fire fighting and rescue tasks.These include shovel,pike poles,axes and cutting equipment, halligan bars...
Optional	Back alarm and Camera can be equipped Standard carbon steel, stainless steel optional ** USA or Germany fire pump can be optional

[if gte mso 9]>1111MicrosoftInternetExplorer402DocumentNotSpecified7.8 磅Normal0

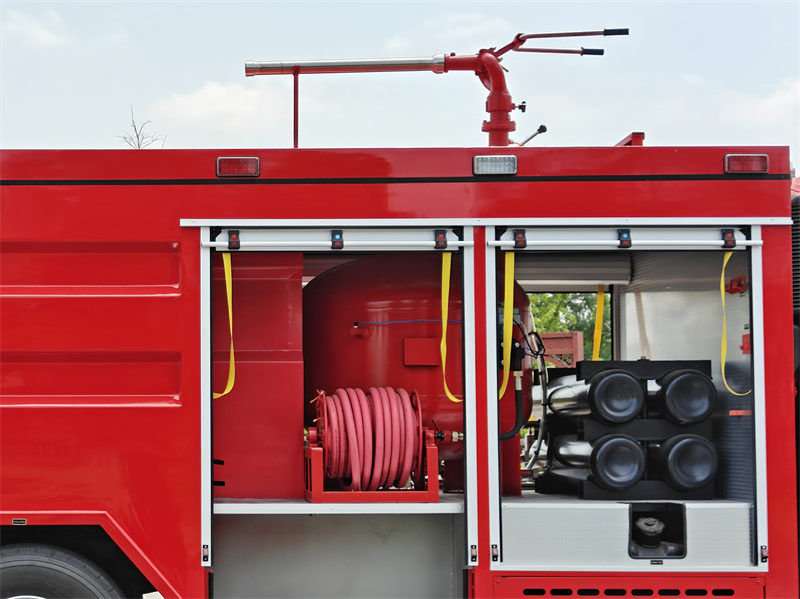

Howo fire fighting truck

» Ⅱ. Product Parameter for Howo fire fighting truck ：

[if gte mso 9]>1111MicrosoftInternetExplorer402DocumentNotSpecified7.8 磅Normal0 1. Powerful Engine and Superior Chassis：

♦ The 6x4 configuration provides exceptional traction and load-bearing capacity, making it ideal for operation in accident scenes such as factories and warehouses on rough, slippery, or unpaved roads.

♦ The Howo TX cabin chassis is reinforced to reliably support heavy-duty equipment (dry powder systems, water tanks, nitrogen cylinders), ensuring stability and safety during driving and operation.

♦ The Weichai WP10.340E32 engine is a proven and mature engine with high torque and excellent low-speed torque characteristics, making it ideal for fire trucks that require frequent starts, acceleration, and continuous operation.

♦ The HW 10-speed transmission features closely spaced gears, allowing the driver to precisely select the appropriate gear based on road conditions and load, ensuring smooth and efficient power delivery.

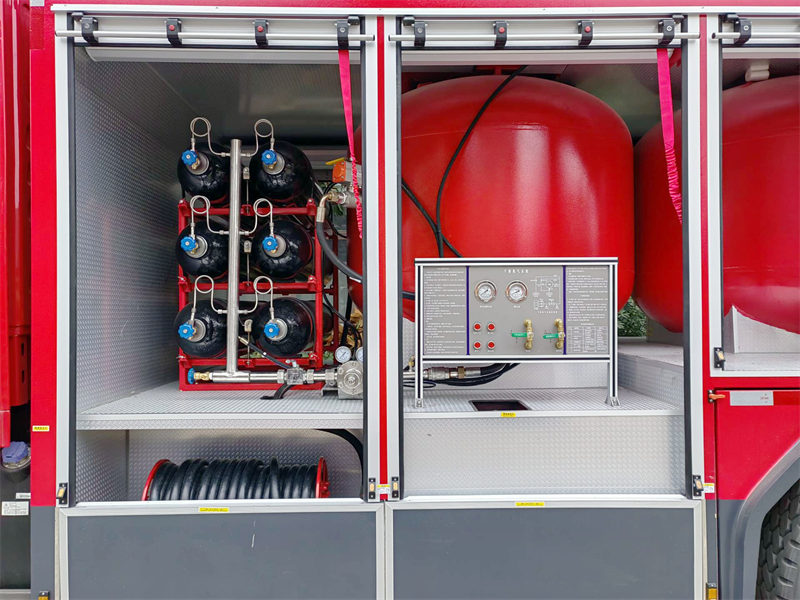

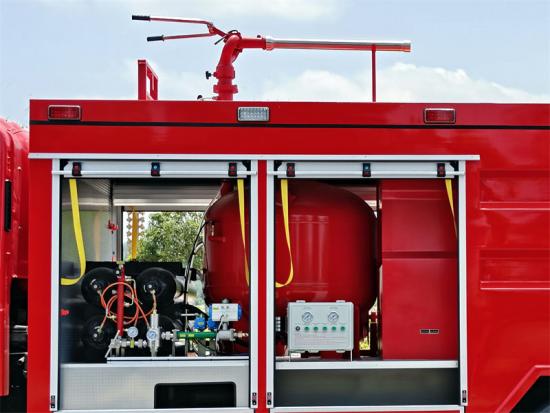

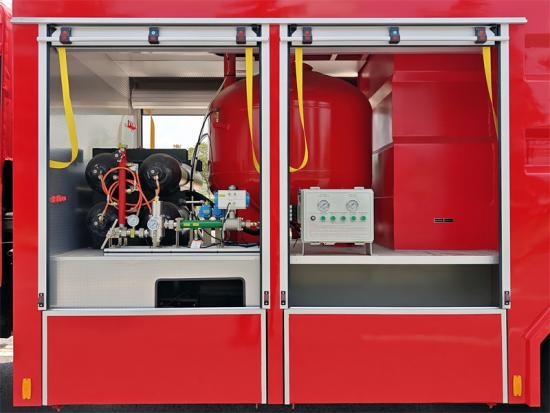

2.Dry Powder Fire Extinguishing System:

♦ A total dry powder canister with a capacity of 700 kg provides ample reserves for sustained spraying over extended periods.

♦ 4 units 80 L nitrogen cylinders with a design pressure of up to 15 MPa provide an extremely powerful power source.

♦ High-pressure nitrogen ensures the dry powder is sprayed at extremely high speeds and with excellent atomization, instantly covering the fire source for rapid suffocation and chemical suppression.

♦ Suitable for extinguishing Class A (solid), Class B (liquid, gas), and Class C (electrical) fires, it is an effective tool for handling fires involving oil tanks, chemicals, power facilities, and natural gas leaks.

[if gte mso 9]>1111MicrosoftInternetExplorer402DocumentNotSpecified7.8 磅Normal0 3. Reka Bentuk Superstruktur Profesional:

♦ Barisan panjang lampu amaran, siren pneumatik, lampu penanda sisi, dan lampu LED luaran dan bumbung.

♦ Ini membentuk amaran audio-visual yang komprehensif dan sistem pencahayaan kerja, memastikan operasi yang selamat dan cekap pada waktu malam atau dalam keadaan penglihatan yang rendah.

♦ Penggera dan kamera undur pilihan: Untuk kenderaan besar ini, ini sangat meningkatkan keselamatan apabila mengundur dan bergerak dalam persekitaran yang kompleks.

♦ Kabin dua baris: Membenarkan krew bomba yang lengkap ditempatkan secara serentak, membolehkan kakitangan menjalankan penyebaran misi dan pemeriksaan peralatan dalam perjalanan.

♦ Alat onboard standard: Termasuk linggis, kapak, alat pemotong, memenuhi keperluan perobohan dan menyelamat.

Produk--100% Disesuaikan Tahap Satu!

Pengangkutan--100% Keselamatan, Kemudahan, Cekap!

Perkhidmatan--7hari + 24jam Perkhidmatan Selamatkan!

1. kita boleh melakukan reka bentuk mengikut kepada keperluan anda .

2. kami boleh menawarkan anda berkualiti tinggi & harga berpatutan

3. kami boleh menawarkan anda perkhidmatan selepas jualan yang boleh dipercayai

4. kita ada pasukan reka bentuk profesional yang mahir

5. penghantaran segera. sebarang tempahan dialu-alukan.

Kilang CEEC juga membekalkan alat ganti (asal, OEM, dan penggantian) untuk semua jenis trak dan treler dengan diskaun dan kualiti yang bagus untuk memastikan trak dan treler pelanggan kami berada dalam keadaan kerja yang baik.

★ jenis Euro 3, enjin sinotruk, super power

★ Kapasiti tangki air dan tangki Buih boleh menjadi pilihan.

★ 12 bulan alat ganti bergerak pantas secara PERCUMA

★ Pengeksport enjin bomba HOWO sah

★ Operasi yang mudah dan penyelenggaraan yang mudah

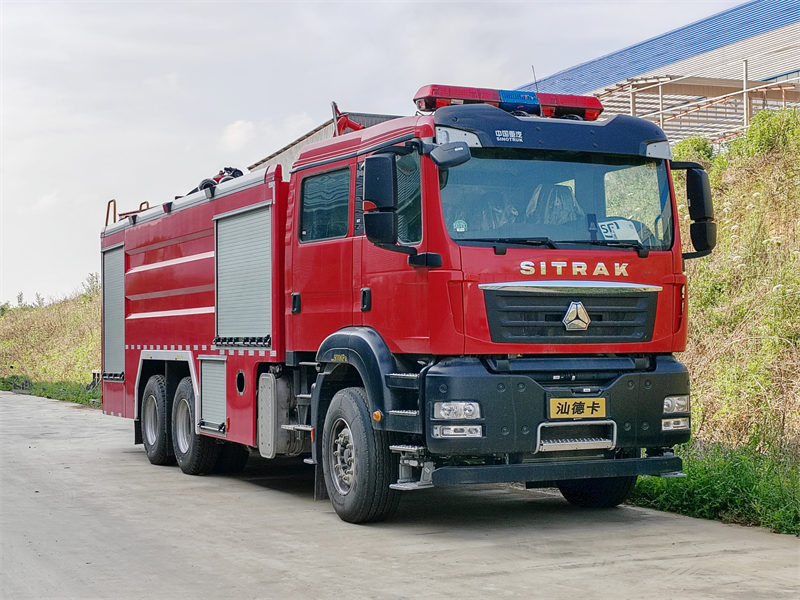

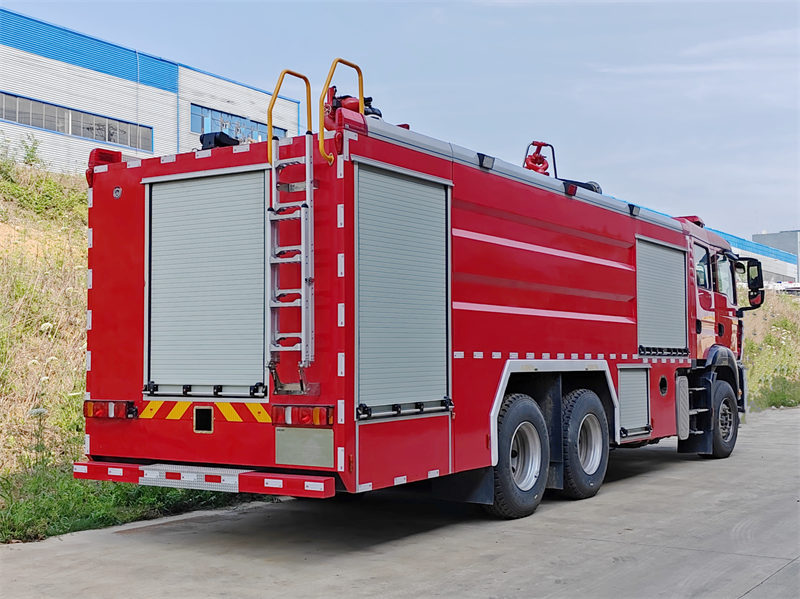

Howo fire fighting truck

Howo fire fighting truck dry powder

CEEC TRUCKS ialah pembekal utama trak pemadam kebakaran di China. Kami mempunyai lebih 10 tahun pengalaman eksport trak bomba. Kami boleh memastikan masa penghantaran yang cepat dan jaminan 12 bulan untuk jentera bomba kami. Jentera bomba kami dijual kepada lebih daripada 80 negara termasuk Eropah Timur dan negara-negara CIS, Afrika, Asia Tenggara, Amerika Tengah dan Selatan, Timur Tengah, dll.
