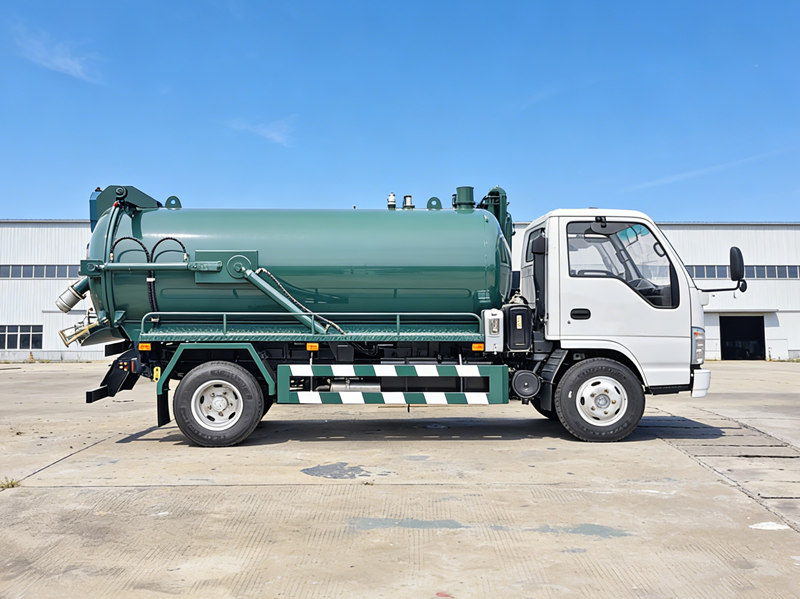

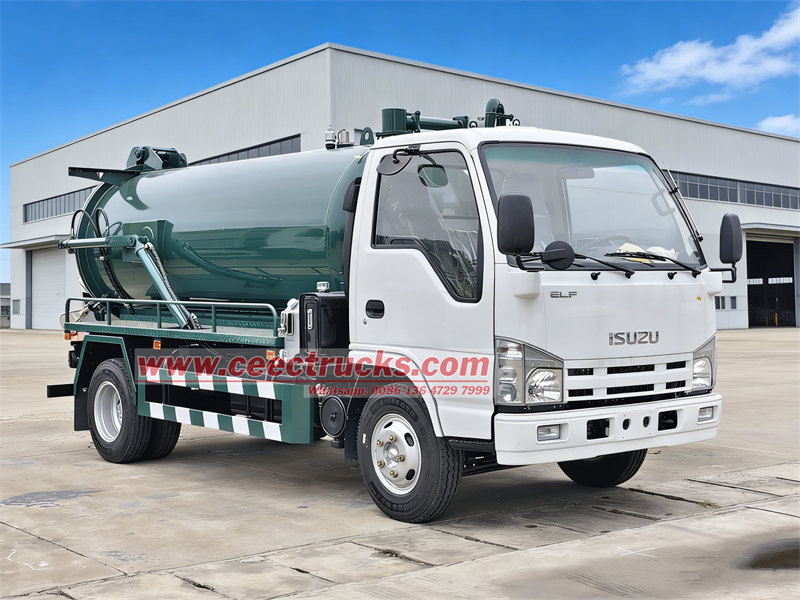

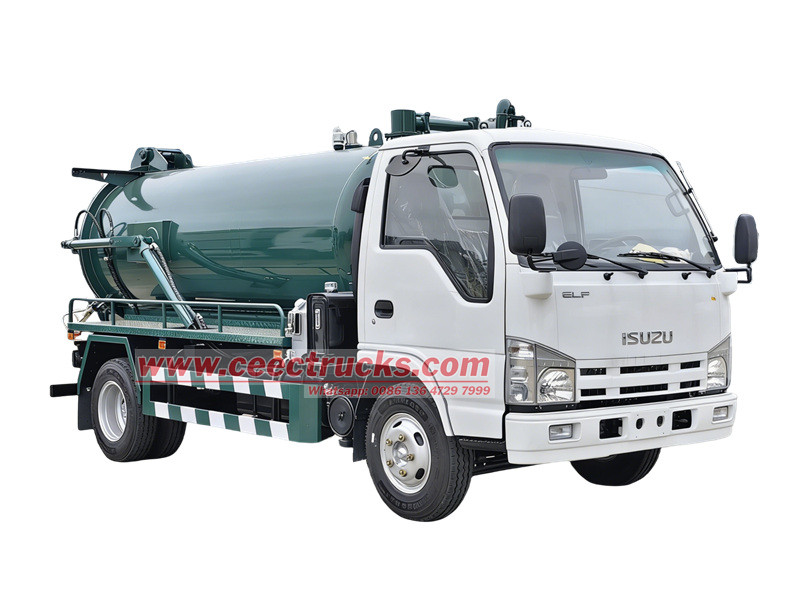

The ISUZU 5000L Vacuum Suction Truck is a compact and professionally performing sanitation equipment. Powered by a reliable engine, it features a 5000-liter carbon steel tank and an efficient Italian BP vacuum pump, delivering strong suction power to rapidly complete sewage extraction tasks within a depth of 7 meters. Its hydraulic lifting mechanism and rear door design ensure thorough sewage discharge, making it highly suitable for daily dredging and septic tank treatment in space-constrained environments such as urban streets and communities.
Kapasiti kerja:

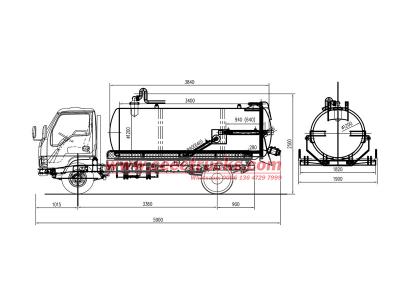

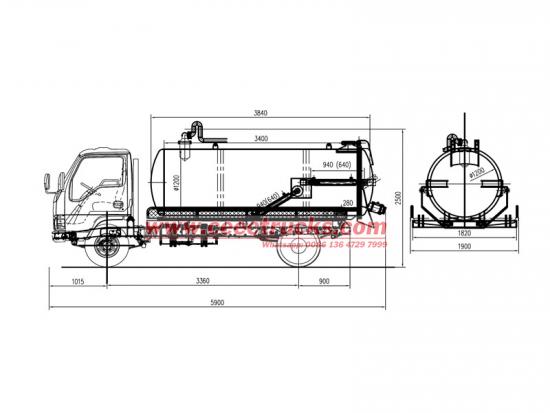

5000LDimensi ( mm ):
5900*2200*2500 mmJarak roda ( mm ):
3360 mmKuasa enjin:
98 HPJenis enjin:
4JB1CNPemanduan gandar:
4x2, LHDKotak gear:
ISUZU MSB, 5 forward and 1 reverseTeguran:

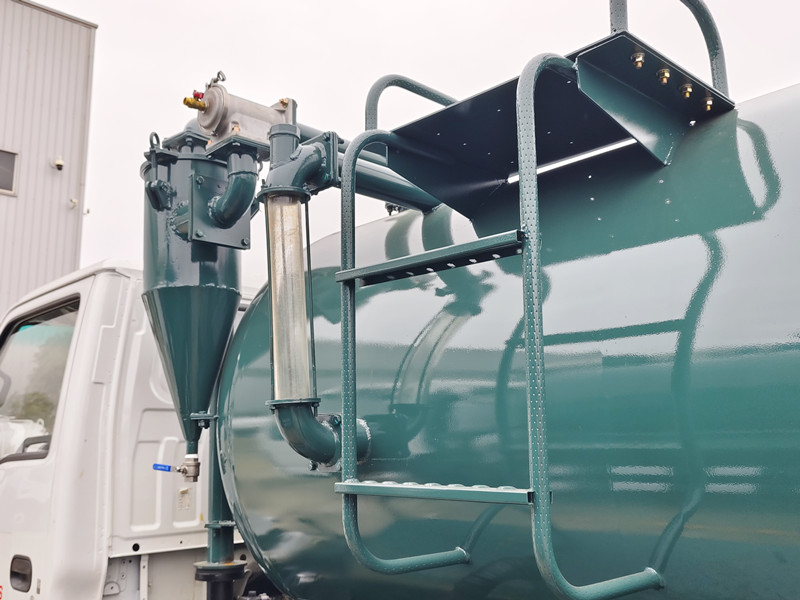

Italy BP MEC6500 vacuum pump, secondary anti-overflow device
[jika gte mso 9]>

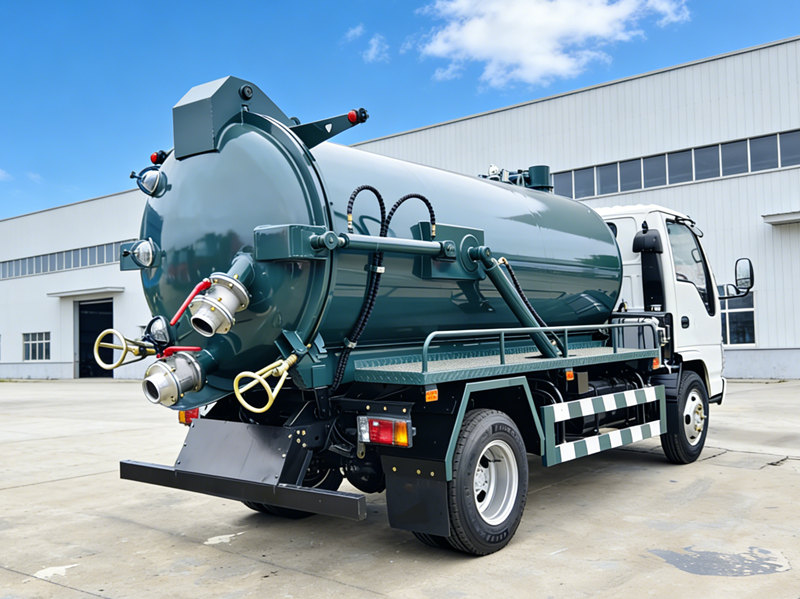

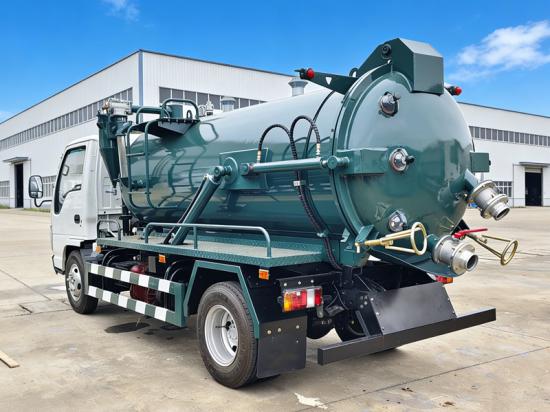

The ISUZU 5000L Vacuum Tank Truck is a compact and highly efficient operational vehicle designed to meet the sanitation needs of urban areas and communities. Built on the reliable ISUZU light-duty chassis, it is equipped with a 4JB1CN engine that provides 98 horsepower. At its core lies a 5000-liter cylindrical carbon steel tank, paired with an Italian BP MEC6500 vacuum pump system, achieving a vacuum degree of up to 94% and a suction depth of 7 meters. With a suction flow rate of 7000 liters per minute, it boasts outstanding cleaning capabilities.
The design of this

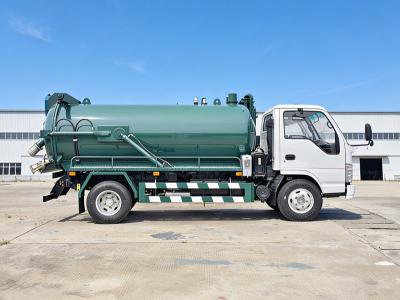

ISUZU mini septic tank truck

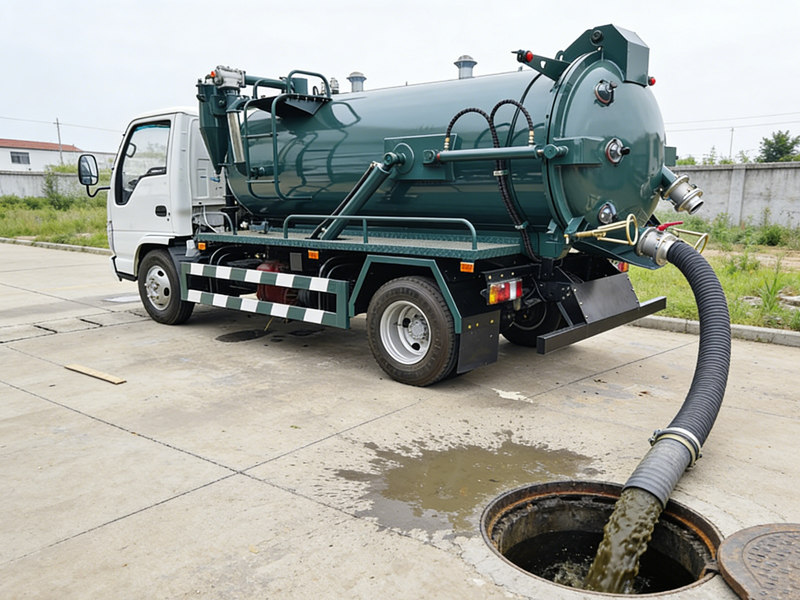

emphasizes practicality and durability. The tank is constructed from 6mm thick steel plates, and the hydraulic lifting mechanism allows for an angle of over 45 degrees. It is also equipped with a hydraulic rear door and an 8-meter wire-reinforced suction hose, ensuring thorough sewage discharge and convenient operation. It is ideally suited for tasks such as dredging narrow street sewers, maintaining small septic tanks, and handling daily sewage cleaning in community properties. This vehicle is a reliable, adaptable, and professional piece of sanitation equipment.
CEEC factory
is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
▶ Features:

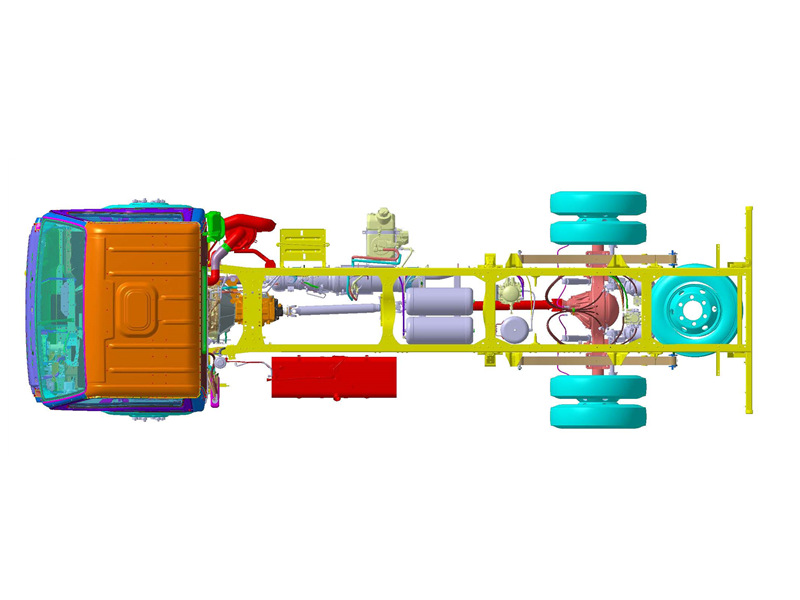

★ ISUZU NKR ligh-duty chassis, 4×2 left hand drive.
★ ISUZU 4JB1CN diesel engine, 98HP, Euro 4 emission standard

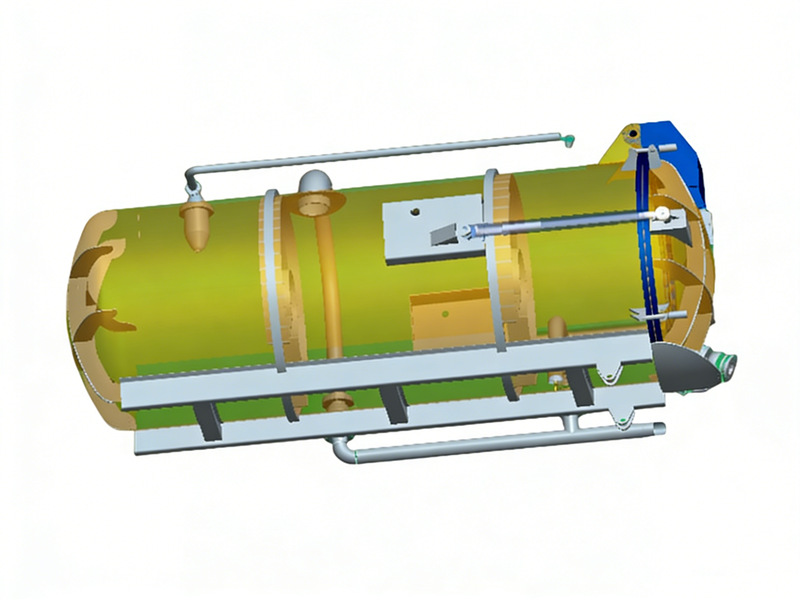

★ 5000 liters vacuum tank, made of high-quality carbon steel, 6mm thick
★ Equipped with Italy BP MEC6500 vacuum pump, super powerful
★ With hydraulic tank lifting and rear door open
▶ Product Parameters :
|
Technical Specifications of ISUZU 5000L sewage tank truck |
||
|
Main specification |
Chassis brand |
ISUZU |
|
Tank capacity |
5000 liters |
|
|
Drive type |
4x2, left hand drive |
|
|
Chassis |
Cabin |

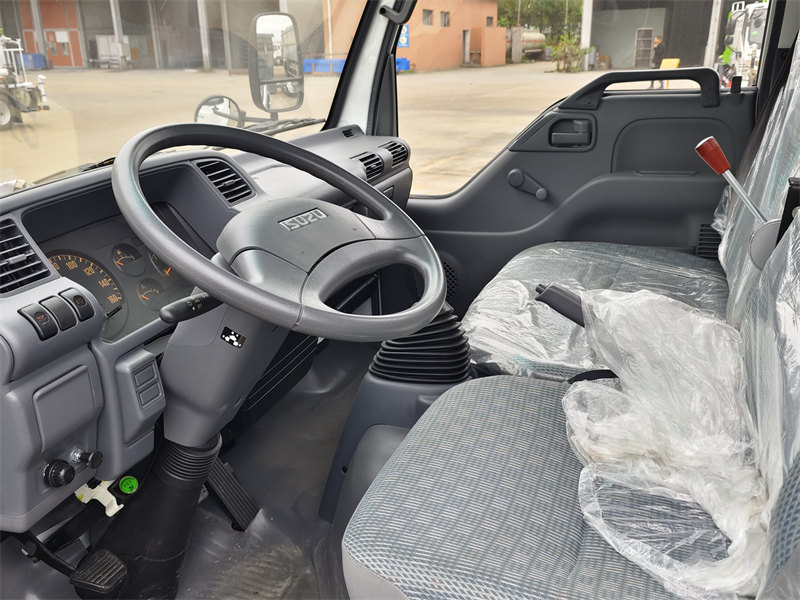

Single row, 2 seats, with AC |
|
Wheel base |
3360mm |
|
|
Wheel track (front/rear) |
1504/1425 (mm) |
|
|
Leaf spring |
8/6+5 pcs |
|
|
Axles (front/rear) |
2580kg/4720kg |
|
|
Tire |
7.00R16 |
|
|
Engine |
Engine brand |
ISUZU |
|
Model |
4JB1CN |
|
|
Power |
98 hp (72KW) |
|
|
Displacement |
2771 ml |
|
|
Emission standard |
Euro 4 |
|
|
Sewage Suction System |
||
|
Tank Volume(L) |
5,000 |
|
|
Tank shape |
Cylindrical |
|
|
Tank Material |
Q235 carbon steel /6mm thickness |
|
|
Vacuum pump |
Italy BP |
|
|
Pump model |
MEC6500 |
|
|
Flow |
7000 L/min |
|
|

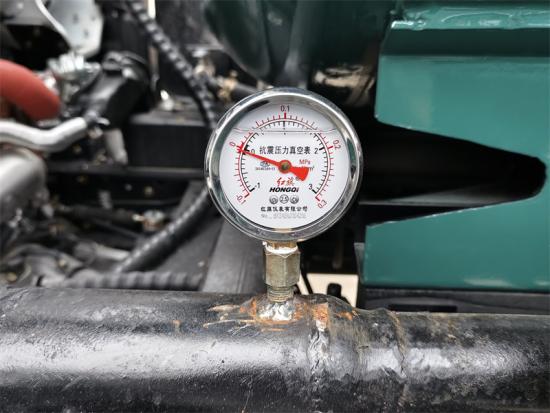

Max. vacuum |
94% |
|
|
Suction Depth(m) |
7 meters |
|
|
Tank Tipping angle(°) |
More than 45 |
|
|
Rear door |
Open and closed by hydraulic cylinders |
|
|
Suction hose |
8 meters wire reinforced hose |
|
▶ Product Advantages :
ISUZU Chassis
Engine: 4JB1CN
Power: 98HP
Gearbox: ISUZU MSB 5-speed, manaul
Front/rear axle load: 2580kg/4720kg

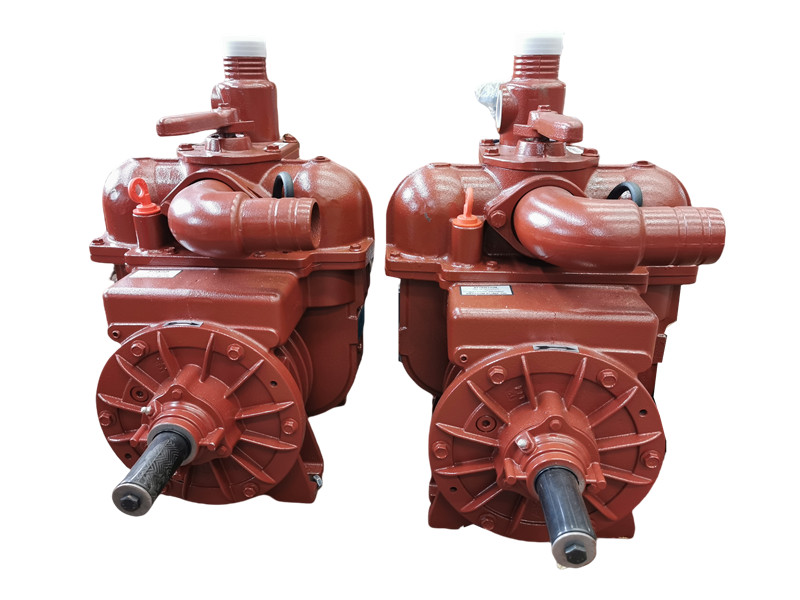

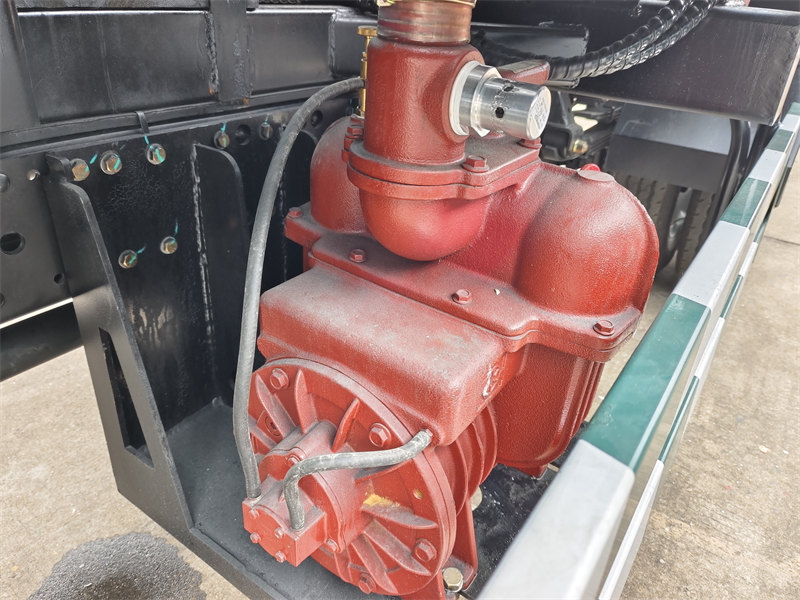

BP MEC6500 vacuum pump
Model: MEC6500
Max. Flow Rate: 7000L/min
Max Speed: 1400rpm
Maximum Vacuum: 94%
Power: 19kw
Vacuum Tanker
Capacity: 5000 liters
Material: high quality carbon steel
Thickness: 6mm
Tank lifting angle: ≥45°
Rear door: hydarulic open

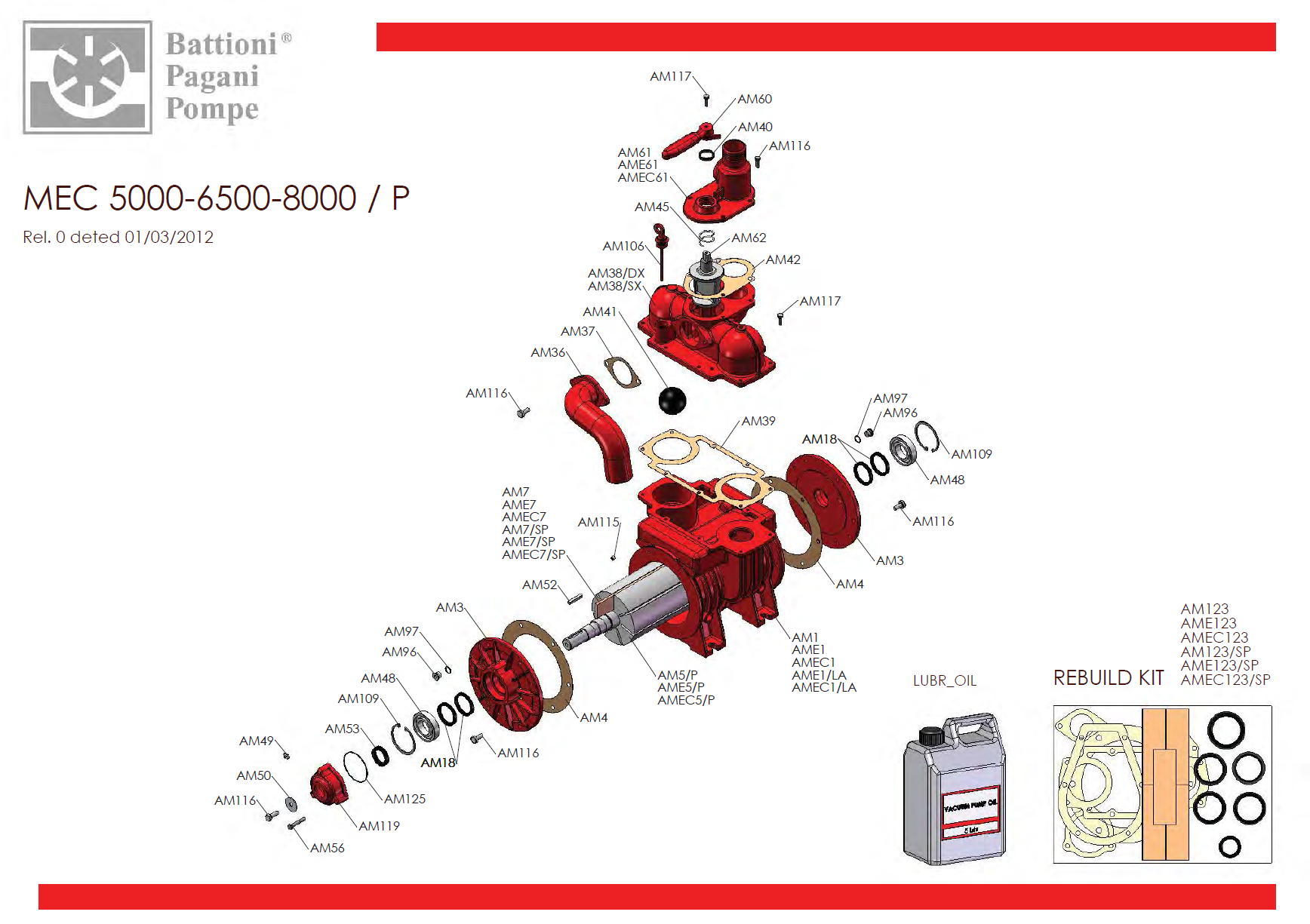

▶ Specifications of BP MEC6500 vacuum pump :
|
|
|
Product |
Geometrical capacity |
Max rpm |
Max abs
|
Max
|
Max
|
Power
|
Weight kg |
||||||||||
|
m³/h |
l/min |
cfm |
M |
P |
D |
H |
HM |
M |
P |
D |
H |
HM |
|||||
|
MEC 1000 |
75,6 |
1260 |
45 |
600 |
1400 |
- |
1400 |
- |
2,5 (36) |
89% (26,3”) |
60% (18”) |
3,5 (4,7) |
40 |
34 |
- |
48 |
- |
|
MEC 1600 |
118,8 |
1980 |
70 |
600 |
1400 |
- |
1400 |
- |
2,5 (36) |
89% (26,3”) |
60% (18”) |
4,5 (6) |
48 |
42 |
- |
56 |
- |
|
MEC 2000 |
165 |
2750 |
97 |
600 |
1400 |
1400 |
1400 |
1400 |
2,5 (36) |
91% (27,0”) |
60% (18”) |
5,5 (7,3) |
75 |
65 |
65 |
81 |
77 |
|
MEC 3000 |
216 |
3600 |
127 |
600 |
1400 |
1400 |
1400 |
1400 |
2,5 (36) |
92% (27,2”) |
60% (18”) |
7 (9,4) |
86 |
75 |
77 |
92 |
89 |
|
MEC 4000 |
261 |
4350 |
154 |
600 |
1400 |
1400 |
1400 |
1400 |
2,5 (36) |
94% (28,0”) |
60% (18”) |
9 (12,6) |
97 |
85 |
90 |
116 |
102 |
|
MEC 5000 |
369 |
6150 |
217 |
600 |
1400 |
1400 |
1400 |
1400 |
2,5 (36) |
94% (28,0”) |
60% (18”) |
11 (14,7) |
127 |
120 |
121 |
136 |
132 |
|
MEC 6500 |
420 |
7000 |
247 |
600 |
1400 |
1400 |
1400 |
1400 |
2,5 (36) |
94% (28,0”) |
60% (18”) |
12,5 (16,7) |
142 |
129 |
130 |
154 |
150 |
|
MEC 8000 |
486 |
8100 |
286 |
600 |
1400 |
1400 |
1400 |
1400 |
2,5 (36) |
94% (28,0”) |
60% (18”) |
16 (21,4) |
157 |
140 |
141 |
174 |
162 |
▶ Product Details :

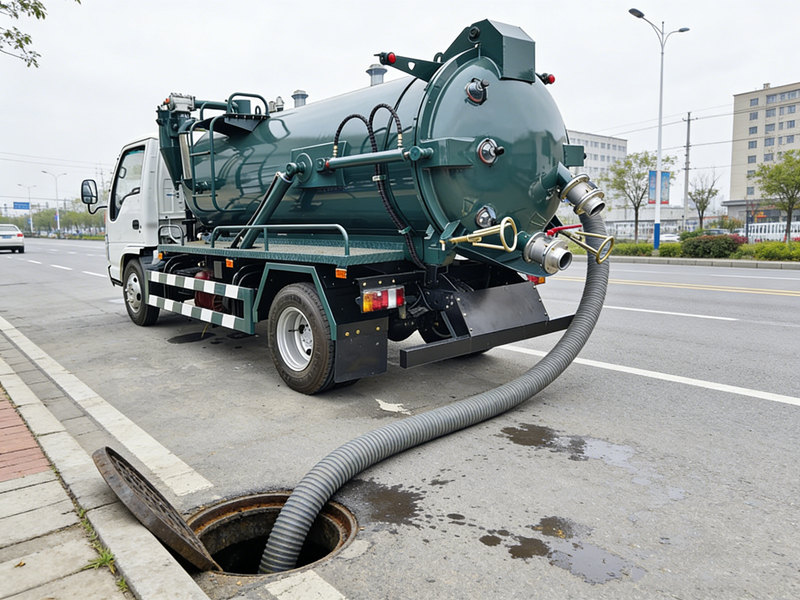

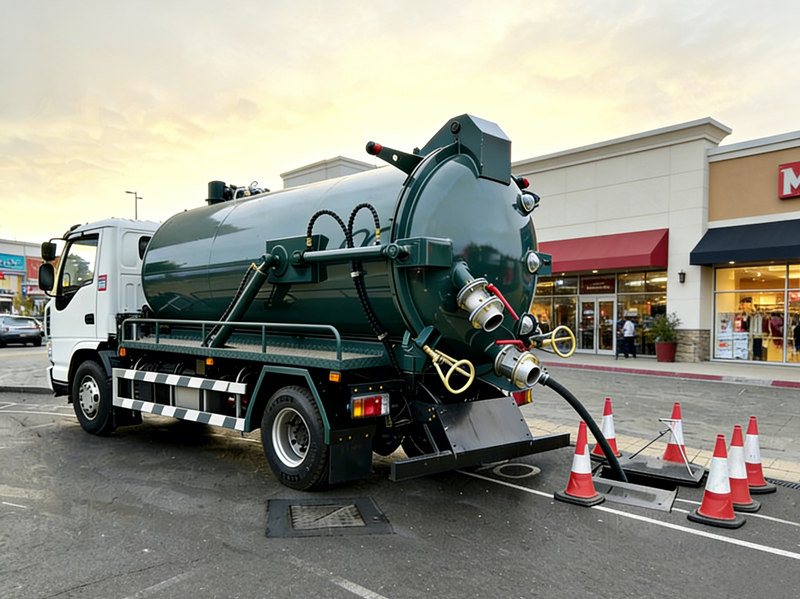

▶ Product Applications :
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5. promptly delivery. any order is welcome.
CEEC factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
★
Euro 3 type,
sinotruk engine, super powerful
★ 16000Liters to 22000Liters capacity can be optional.
★
12 months fast moving spare parts for FREE
★ Authorized SHACMAN Cesspit Emptier exporter
★ Easy operation and easy maintenance
